Steam Cleaner for Air Conditioners

Request a Quote

Website: http://induscleaner-en.com/1-6-steam-cleaner-for-air-conditioners.html

JNX-6 steam cleaner for air conditioner

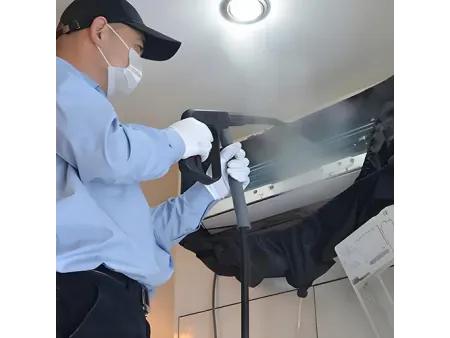

Steam cleaner for air conditioners is designed to deliver deep, hygienic cleaning for air conditioning components such as evaporators, condensers, and filters. By using high-temperature steam, it effectively removes dust, grease, and microbial buildup, ensuring both thorough sanitization and improved indoor air quality. Regular use not only helps disinfect the system and eliminate unpleasant odors but also prevents blockages, enhances cooling efficiency, and extends the overall lifespan of the air conditioning unit.

Performance Features

Instant steam generator produces steam in 60 seconds
Adjustable temperature and pressure to meet various cleaning requirements
Low-water alarm
Overheat protection system

Specifications

Model	JNX-6
Power	3kW
Pump motor power	48W (DC silent pump)
Voltage/frequency	220V 50Hz
Steam temperature	120-150°C
Steam flow rate	8-10l/h
Steam pressure	3-5bar
Water tank capacity	10L (detachable water tank)
Dimensions	48×25×40cm
Steam hose length	5m (PU anti-scalding steam hose)
Cleaner nozzle	1pc (multi-hole wide angle nozzle)
Control system	PLC
Safety protection	Automatic shut-off when water shortage overheat protection
Applications	Effective cleaning of air conditioners and evaporators for residential and commercial use
Machine weight	12kg

Key Advantages of Steam Cleaner for AC

Rapid Heating

Instant steam generator delivers 160°C high-pressure steam (up to 15MPa) in 10 seconds, penetrating AC fins and blower wheels to eliminate E. coli, Staphylococcus aureus, and other pathogens with 99.99% efficacy.
Steam impacts debris at 20 m/s, emulsifying and dislodging sludge caused by dust, mite residues, and condensation, reducing the need for manual scrubbing and significantly enhancing cleaning efficiency.

No-Disassembly Cleaning in 3 Minutes

Flexible steam hose and multi-angle nozzles: Includes 1.5m high-pressure hose (withstands 200°C) and 5-position rotary nozzles to access complex structures like wall-unit evaporators, cabinet air ducts, and central AC vents without disassembly.
Smart damage prevention: Temperature sensors and PLC control monitor components in real-time; automatically reduce steam output if plastic surfaces exceed 70°C to prevent melting, ensuring compatibility with 99% of AC models.

Smart Operation

Control panel: Switching between "Household" and "Commercial" modes with real-time display of steam temperature, pressure, and usage duration.
Self-diagnosis: 32 built-in sensors detect issues like low water or heating faults, with pop-up alerts to operator phones, reducing misdiagnosis by 80%.

Configuration

1.5 m stainless steel braided PTFE steam hose: 1 pc

Industrial steam gun:
1 pc

Descaling agent:
1 pack
