Radial Ply Tire Building Machines

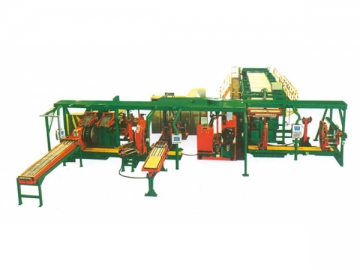

Two-Drum and Three-Drum Tire Building Machine for All-Steel Radial Ply Tire
Specifications| Bead Size | 17.5" -24.5" | |
| Section Width of Green Tire (mm) | 122.5 -365 | |
| Maximum Diameter of T ransfer R ing (mm) | 1, 250 | |
| Size of Green T ire | 7.5R17.5-11R24.5 | |
| Rim Diameter of G reen T ire (mm) | 740- 1, 230 | |
| Diameter of Belt Building Drum (mm) | 860 -1, 160 | |
| Width of Belt Building Drum (mm) | 400 | |
| Speed of Belt Building Drum ( r/min ) | 0-22 | |
| S peed of Major Drum (r/min) | 0-150 | |
| Center H eight (mm) | 1, 050 | |
| Overall Dimensions (mm) | L | 17, |
| W | 19, 500 | |
| H | 2, 850 | |
| Gross Weight (t) | 28 | |
