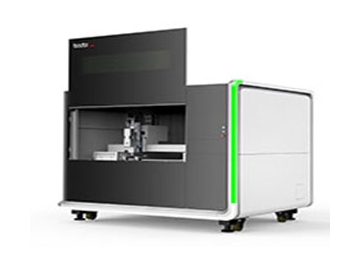

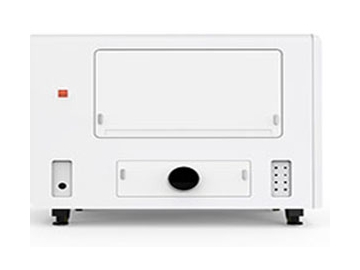

Precision Laser Cutting Machine i3 Linear
Fiber Laser Cutter, Fiber Laser Cutter System
The i3 linear precision laser cutting machine has fast cutting speed which can be up to 120m/min. The max. accelerating speed reaches 1.4G. The working efficiency is high.
This i3 cutting machine is specially designed for precision cutting of sheet metal. It adopts linear motor so that the running is stable. The positioning accuracy is ±0.01mm and the re-positioning accuracy is ±0.004mm so that the processing quality can be ensured. During the process of parts cutting, the material to be cut is fixed by pneumatic clamping so that the positioning accuracy can be improved. So i3 cutting machine is quite suitable for thin sheet cutting. The thickness of the applicable thin sheet can be 0.3mm. The processing precision is increased.
The processing area is 600×600mm which is area saving. The entire machine is designed with a compact structure, it is convenient to move. This laser cutting machine can be easily used just by connecting with single phase power supply. And it features a wide range of applications.

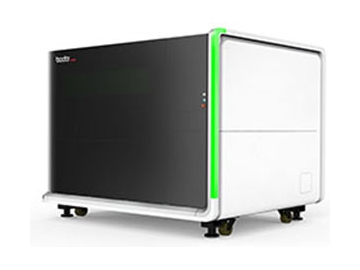

i3 series laser cutting machine adopts 360° fully enclosed design, so that smoke and laser radiation can be totally isolated for operators’ safety. The worktable is made of marble which features high precision, high hardness, good wear resistance and low coefficient of linear expansion, ensuring precision stability during high speed running and improving processing performance. And the marble platform will not be rusted. It is also acid and alkaline resisting so that it is easy to maintain.
- Cast iron machine body

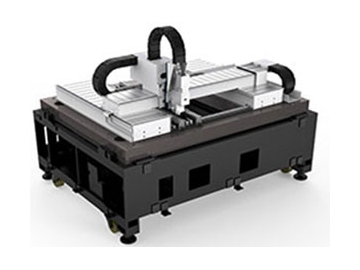

The i3 linear precision laser cutting machine bed is made of carbon structural steel which features good toughness, plasticity, welding performance and hot workability. The material is treated by destressing, annealing and vibration aging so that the machine body is more stable. And the precision of the machine body can be kept for 20 years.
- Cast aluminum beam
The cross beam is made of aluminum alloy. The material features light weight and high rigidity. And the cross beam is fabricated by die-casting. And then there are some subsequent processes such as artificial aging and solution treatment so that the rigidity and toughness of the cross beam can be further increased. The solid and durable cross beam can be suitable for high speed running during processing. It can realize high speed and flexible cutting of different patterns when meeting the requirements of precision.
- Auto Focus laser head
With the auto focus laser head, the i3 laser cutting machine is suitable for different focal length. The focal length is controlled by the control system of machine body. The focal point can be automatically adjusted during the cutting process which means that it can realize best cutting of plate material of different thickness. Meanwhile, there is no need of manual adjustment so that the miss and error caused by manual operation can be effectively avoided.
The laser head is equipped with build-in dual water cooling structure which can be used to prevent overheat of lens, thus increasing service life. The entire laser head is fully enclosed for better protect its parts. Besides, there is additional collimating lens protector and focal lens protector which ensures the safety of machine parts and human life. - High speed perforating
The i3 cutting machine adopts Bodor lightning technique so the perforating time is shortened. It can save 90% of the perforating time. For different material and plate thickness, when Bodor lightning is combined with manual focus laser head, the focal length should be adjusted manually so the efficiency is low; while it is combined with auto focus laser head, the data stored in the system can be automatically read so the efficiency is high. Perforating focal length is added. And the perforating focal length and cutting focal length can be set separately so that the cutting can be more accurate.
- Bodor Pro 2.0
Bodor Pro 2.0 is the self-developed operation system which can realize intelligent typesetting of cutting patterns. It supports multi-graphics import, automatic cutting sequence optimizing, intelligent edge-searching and automatic positioning. For controlling, we select the best logic programming and software interaction to effectively improve material utilization and reduce wastes. The simple and fast operation system can effectively and accurately give cutting instructions which improves customer experience.
- Intelligent stroke protection
The stroke of cross beam and cutting parts will be automatically monitored to ensure that the operating position of these parts are within the processing range. It is also equipped with fixing and limiting functions which greatly improves the safety of machine and human life.
- Automatic lubricating system
The automatic lubricating system can provide quantitative lubricating oil for cutting machine regularly to ensure its normal and high speed running. This system is also equipped with abnormity warning and liquid level alarm functions. It greatly increased the cutting precision and prolonged the service life of transmission mechanism.
- Safety following module
During cutting of material, the space between laser head and workpiece will be kept at any time to reduce the risk of collision. i3 is also equipped with automatic stop function after collision to reduce accident rate.
- Intelligent alarm system
This intelligent alarm system provides comprehensive abnormity alarm function. It will also show the information on interface so that operator can notice the abnormity of the machine previously, reducing potential danger.
| Model | i3Linear |
| Working Area | 600*600mm |
| Laser Power | 3000w/2000w/1500w/1000w |
| X/Y-axis positioning accuracy | 0.01mm |
| X/Y-axis repositioning accuracy | 0.004mm |
| X/Y-axis Max. linkage speed | 80m/min |
