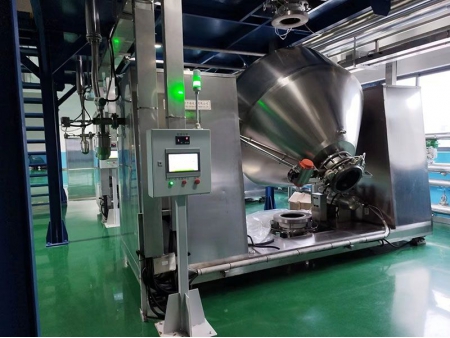

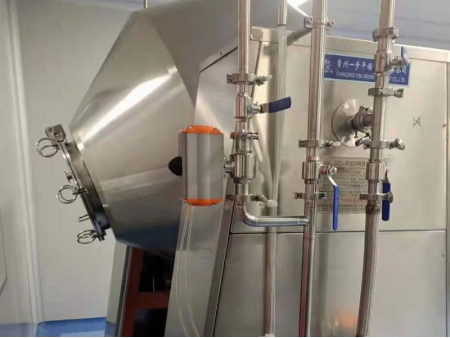

SZH Series Double Cone Blender
The double cone blender is designed to achieve uniform mixing of powders and granules by utilizing a rotating, double-cone container. Materials are loaded into the blender either via vacuum transfer or manually. As the container rotates, the materials inside undergo a complex tumbling motion, ensuring thorough and even mixing throughout the process. This blender is ideal for industries that require precise blending of ingredients, providing a reliable solution for consistent product quality.
Specifications
| Model | Total volume (L) | Working capacity (L) | Material loading capacity (kg) | Speed (rpm) | Power (kW) | Weight (kg) |
| | 50 | 25 | 15 | 25 | 0.55 | 500 |
| | 150 | 75 | 45 | 20 | 0.75 | 650 |
| | 300 | 150 | 90 | 20 | 1.1 | 820 |
| | 500 | 250 | 150 | 18 | 1.5 | 1250 |
| | 1000 | 500 | 300 | 15 | 3 | 1800 |
| | 1500 | 750 | 450 | 12 | 4 | 2100 |
| | 2000 | 1000 | 600 | 12 | 5.5 | 2450 |
| | 3000 | 1500 | 900 | 9 | 5.5 | 2980 |
| | 4000 | 2000 | 1200 | 9 | 7.5 | 3300 |
| | 5000 | 2500 | 1500 | 8 | 7.5 | 3880 |
| | 6000 | 3000 | 1800 | 8 | 11 | 4550 |
| | 8000 | 4000 | 2400 | 6 | 15 | 5200 |
| | 10000 | 5000 | 3000 | 6 | 18.5 | 6000 |
