XHZS390 Nipping Press/Book Clamp Press
XHZS390 nipping press, or book clamp press, is a special supporting machine for book edge sanding and book edge gilding. It uses hydraulic pressure to compress the book core with adjustable pressure ranging from 1T to 3T to meet different book requirements, so that books can be held firmly during edge grinding.
Parameter| Max. sanding size (L×W) | 390×390mm |
| Min. sanding size (L×W) | 70×70mm |
| Power | 1.5kW |
| Machine weight | 500kg |
| Machine dimensions (L×W×H) | 1600×600×800mm |

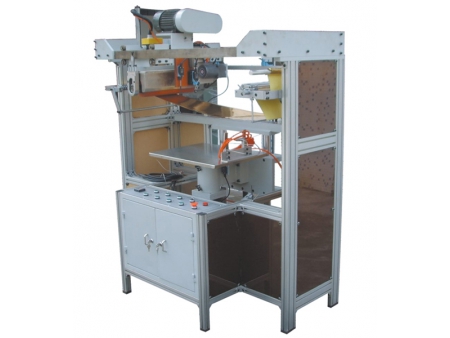

This book edge gilding machine is an auxiliary device for hot stamping gilt edges. Its primary function is to smooth all three edges of books, ensuring an ideal gilded finish. Suitable for books, notebooks, card books, playing cards, and similar products, the edge gilding machine delivers stable quality and a wide sanding range. The book edge gilding combines manual lifting with automatic sanding, offering flexible operation, a high degree of automation, and simple, user-friendly use.
Parameter| Max. gilding size (L×W) | 390×390mm |
| Min. gilding size (L×W) | 70×70mm |
| Power | 2.5kW |
| Machine weight | 400kg |
| Machine dimensions (L×W×H) | 1400×800×1800mm |
The book edge sanding machine provides essential support for hot stamping gilt edges by sanding and smoothing all three book edges. Its key role is to prepare books for a flawless gilded finish. Featuring manual lifting and automatic sanding, the book edge sanding machine ensures efficient performance with straightforward, user-friendly operation.
Parameter| Max. sanding size (L×W) | 390×390mm |
| Min. sanding size (L×W) | 70×70mm |
| Power | 2.5kW |
| Machine weight | 700kg |
| Machine dimensions (L×W×H) | 1200×1400×1700mm |
