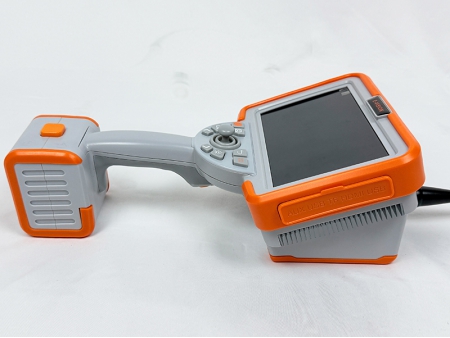

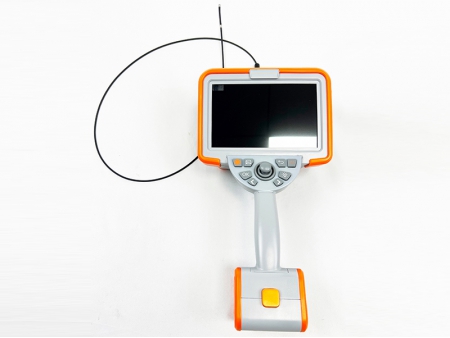

• 7-inch full-view IPS LCD touchscreen, supports visual icon-based control interface, interchangeable probe cables, modular design for portability and easy operation.
  Replaceable optional probe cable design; supports 360° digital stepper motor with multi-mode electronic articulation; free-angle positioning; variable speed control and freeze function; supports HD probe cables of 1–15m length.
• Versatile borescope system with HD probes, dual-camera lenses, and advanced lighting options
  1. -Supports 6.0mm and 4.0mm dual-camera measurement lenses (optional).
  2. -Supports 6.0mm, 3.9mm, 2.8mm, 2.4mm, 2.0mm, and 1.0mm direct-view HD probes with front-end temperature detection.
  3. -Supports 6.0mm and 3.9mm side-view dual-camera HD probes (optional).
  4. -Supports 5600K white light, 940nm non-glare infrared night vision, and UV industrial flaw-detection light source.

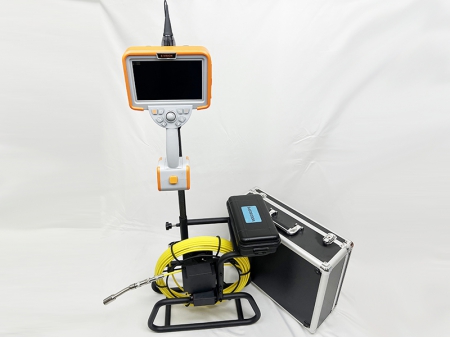

  5. -Optional 10m–30m long-distance borescope reel, equipped with 4K HD 23mm and 40mm 360° omni-directional articulation camera systems.
• Supports industrial endoscope 3D measurement system V1.0, providing high-precision global 3D scanning cloud maps, 3D measurement, with relative error ≤5% (optional).
• Supports real-time intelligent analysis system V1.0 for metal surface defect detection (optional).
• Built-in intelligent inspection operating system: image adjustments include camera parameter settings (brightness, contrast, gamma, hue, saturation, sharpness), auto white balance, image negative filter, flip and mirror, freeze, annotation/drawing, timestamp marking, etc.
• Supports brightness adjustment via finger swipe, auto white balance calibration at any touchpoint.
• Supports split-screen view, picture-in-picture, finger zoom and move, and one-click custom report generation in multiple editable formats.
• Built-in storage of 20GB , with support for TF card and external USB drive.
• One-touch battery status display, lithium battery supports PD fast charging.
• Wireless WiFi & Bluetooth HD video sharing; photo, video, and audio recording with playback.

This product is designed for real-time visual inspection in environments that are difficult for the human eye to access, such as small spaces, deep pipes, or dark rooms. It utilizes both invisible infrared light and white fill light to capture clear images in completely dark or inaccessible conditions.
The main application areas include:

• Automotive & Components: Quality inspection and assembly checks for engines, hydraulic parts, and nozzles.
• Industrial & Pharmaceutical Machinery: Inspection of boilers, heat exchangers, mechanical equipment, and manufacturing devices.
• Petrochemical: Inspection of process pipelines, pressure vessels, boilers, and heat exchangers.
• Electronics & Electrical: Inspection of mechanical operations and components, as well as use in research and development.
• Gas Utilities: Used to check gas pipes for rust, corrosion, water accumulation, and to inspect for damage to exhaust vents.
• Aviation & Aerospace: Routine inspection of turbines, blades, and combustion chambers; aircraft fuselage checks; and R&D for rocket engines.
• Rail & Marine: Inspection of turbines, heaters, diesel engines, boiler flames, and pipelines.
• Construction: Internal diagnostics for steel pipes (rust and dirt), walls, rebar, and bridge joint cracks. Also used for observing internal tunnel cavities and architectural models.
• Water Utilities: Diagnosis of rust and blockages in water and drainage pipes.
• Power Generation: Inspection and maintenance of heat exchangers, pipelines, and turbines in thermal, hydro, and nuclear power plants.
