SDEC Powered Diesel Generators

Request a Quote

Website: http://dieselgenerator-en.com/1-9-sdce-powered-diesel-generators.html

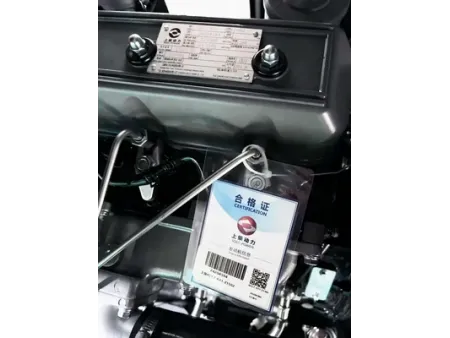

Our diesel generator sets are equipped with SDEC engines and advanced emission control technologies such as EGR (exhaust gas recirculation) and SCR (selective catalytic reduction). Meeting China III and, for select models, China IV emission standards, they are engineered to balance reliable power delivery with reduced environmental impact. Suitable for a variety of industrial, commercial, and backup power needs, they provide a reliable electricity source while supporting cleaner, more sustainable operations.

Frequency	50Hz	60Hz
Prime Power	10-1250kVA (8-1000kW)	20-825kVA (16-660kW)
Standby Power	14-1375kVA (8.8-1100kW)	22-908kVA (17.6-726kW)
Fuel Consumption	3.0-286L/h	6.1-182.8L/h
Displacement	1.1-35.1L	2.3-25.2L

Technical Specifications

50Hz Diesel Generator Sets

Genset Model	Prime Power		Standby Power		Engine Model	Fuel Consumption	Cylinder	Displacement
Genset Model	kVA	kW	kVA	kW	Engine Model	L/h	Cylinder	L
CDS11	10	8		8.8	3Z1.1-G42	3.0	3L	1.1
CDS14	12.5	10	14	11	3ZT1.1-G42	3.8	3L	1.1
CDS17	15	12	16	13	4Z2.3-G11	4.7	4L	2.3
CDS18	16	13	18	14	3Z1.1-G41	5.1	4L	1.1
CDS23	20	16	23	18	4Z2.7-G11	5.9	4L	2.7
CDS28	25	20	28	22	4Z3.0-G11	7.4	4L	3.0
CDS34	31	25	34	27	4ZT3.2-G11	10.1	4L	3.2
CDS41	37	30	41	33	4Z3.2-G41	9.7	4L	3.2
CDS44	40	32	44	35	4Z3.2-G11	8.6	4L	3.2
CDS56	50	40	56	45	4ZT3.5-G21	12.3	4L	3.5
CDS69	63	50	69	55	4ZT4.1-G21	15.6	4L	4.1
CDS75	69	55	75	60	4ZTAA4.1-G21	16.2	4L	4.1
CDS83	75	60	83	66	4ZTAA3.5-G31	19.1	4L	3.5
CDS88	80	64	88	70	SC4H115D2	18.6	4L	4.3
CDS113	105	84	113	90	SC4H140D2	23.0	4L	4.3
CDS125	115	92	125	100	SC4H160D2	25.1	4L	4.3
CDS138	125	100	138	110	4HTAA4.3-G22	28.3	4L	4.3
CDS150	138	110	150	120	6HTAA6.5-G21	30.5	6L	6.5
CDS188	169	35	188	150	6HTAA6.5-G35	35.9	6L	6.5
CDS206	188	150	206	165	SC7H250D2	40.1	6L	6.4
CDS225	200	160	225	180	SC8D280D2	44.9	6L	8.3
CDS250	225	180	250	200	SC9D310D2	50.4	6L	8.8
CDS275	250	200	275	220	6DTAA8.9-G23	55.1	6L	8.8
CDS313	275	220	313	250	SC10E380D2	60.9	6L	10.8
CDS350	313	250	350	280	SC13G420D2	68.9	6L	12.9
CDS375	350	280	375	300	SC12E460D2	73.3	6L	11.8
CDS400	363	290	400	320	SC12E480D2	77.2	6L	11.8
CDS413	375	300	413	330	6ETAA12.8-G22	88.4	6L	12.8
CDS450	400	320	450	360	SC13E550D2	87.9	6L	12.8
CDS500	450	360	500	400	6ETAA12.8-G31	95.8	6L	12.8
CDS550	500	400	550	440	6ETAA12.8-G310	107.5	6L	12.8
CDS563-1	500	400	563	450	6KTAA25-G311	109.0	6L	25.2
CDS625	563	450	625	500	6KTAA25-G310	122.0	6L	25.2
CDS688	625	500	688	550	6KTAA25-G39	133.5	6L	25.2
CDS750	688	550	750	600	6KTAA25-G38	143.1	6L	25.2
CDS825	750	600	825	660	6KTAA25-G32	161.5	6L	25.2
CDS900	825	660	900	720	6KTAA25-G31	172.5	6L	25.2
CDS1000	900	720	1000	800	6KTAA25-G320	197.1	6L	25.2
CDS1100	1000	800	1100	880	6KTAA25-G321	212.8	6L	25.2
CDS1250	1125	900	1250	1000	6WTAA35-G310	259.2	6L	35.1
CDS1375	1250	1000	1375	1100	6WTAA35-G311	286.0	6L	35.1

60Hz Diesel Generator Sets

Genset Model	Prime Power		Standby Power		Engine Model	Fuel Consumption	Cylinder	Displacement
Genset Model	kVA	kW	kVA	kW	Engine Model	L/h	Cylinder	L
CDS22	20	16	22	17.6	4Z2.3-G12	6.1	4L	2.3
CDS22	20	16	22	17.6	4Z2.3-G21	6.1	4L	2.3
CDS28	25	20	27.5	22	4Z2.7-G12	7.1	4L	2.7
CDS28	25	20	27.5	22	4Z2.7-G21	7.1	4L	2.7
CDS33	30	24	33	41	4Z3.0-G12	8.4	4L	3.0
CDS33	30	24	33	41	4Z3.0-G21	8.4	4L	3.0
CDS41	37.5	30	41	33	4Z3.2-G12	10.4	4L	3.2
CDS41	37.5	30	41	33	4ZT3.2-G12	10.4	4L	3.2
CDS47	42.5	34	47	37	4ZT3.2-G21	11.1	4L	3.2
CDS47	42.5	34	47	37	4ZT3.2-G21	12.4	4L	3.2
CDS66	60	48	66	53	4ZT3.5-G21	15.7	4L	3.5
CDS69	63	50	69	55	4HT4.3-G21	15.8	4L	4.3
CDS75	69	55	75	60	4HT4.3-G22	17.0	4L	4.3
CDS77	70	56	77	62	4ZT4.1-G21	19.1	4L	4.1
CDS83	75	60	83	66	4ZTAA4.1-G21	20.1	4L	4.1
CDS88	80	64	88	70	4ZTAA4.1-G31	20.5	4L	4.1
CDS100	90	72	100	80	4HT4.3-G23	21.6	4L	4.3
CDS125	113	90	125	100	4HTAA4.3-G21	23.0	4L	4.3
CDS138	125	100	138	110	4HTAA4.3-G23	28.8	4L	4.3
CDS138	125	100	138	110	4HTAA4.3-G22	27.5	4L	4.3
CDS165	150	120	165	132	6HTAA6.5-G21	28.7	6L	6.5
CDS175	160	128	175	140	6HTAA6.5-G22	34.4	6L	6.5
CDS225	206	165	225	180	6HTAA6.5-G23	37.6	6L	6.5
CDS250	225	180	250	200	6DTAA8.9-G21	42.0	6L	8.9
CDS275	250	200	275	220	6DTAA8.9-G24	54.2	6L	8.9
CDS300	275	220	300	240	6DTAA8.9-G23	59.4	6L	8.9
CDS375	350	280	375	300	6ETAA11.8-G22	73.7	6L	11.8
CDS375	350	280	375	300	6ETAA11.8-G21	71.6	6L	11.8
CDS413	375	300	413	330	6ETAA12.8-G22	88.4	6L	12.8
CDS440	400	320	440	352	6ETAA12.8-G21	88.4	6L	12.8
CDS550	500	400	550	440	6ETAA12.8-G310.1	108.5	6L	12.8
CDS619	563	450	619	495	6KTAA25-G311	1,274	6L	25.2
CDS688	625	500	688	550	6KTAA25-G310	137.5	6L	25.2
CDS770	700	560	770	616	6KTAA25-G39	149.9	6L	25.2
CDS770	700	560	770	616	6KTAA25-G38	149.9	6L	25.2
CDS825	750	600	825	660	6KTAA25-G32.1	171.7	6L	25.2
CDS908	825	660	908	726	6KTAA25-G31.1	182.8	6L	25.2

All of our gensets come standard with an epoxy-coated enclosure and IP55 protection rating. A copper-nickel alloy radiator can be selected for enhanced corrosion resistance, and weekly freshwater rinsing is recommended to remove salt deposits.

For light diesel applications, we recommend China’s national standard No. 0 or -10 diesel with sulfur content ≤10 ppm. Inferior fuel should be strictly avoided. Heavy fuel oil is permitted only for specific marine or industrial models (such as the SC9DF series) and must be preheated to 90-120°C before use.

Optional ComAp Cloud or SmartGen HGM systems allow operators to view real-time data and receive fault alerts via mobile app, enabling efficient monitoring without being on-site.
