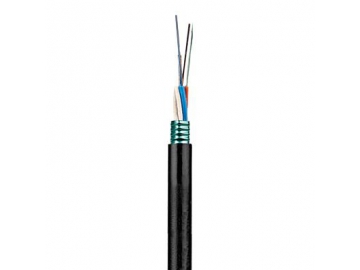

GYTS Optical Fiber Armored Cable
Description
GYTS optical fiber armored cable can provide different cable types whose fiber count ranges from 2 cores to 144 cores. It can be used in aerial building, pipeline and direct burial. The bandwidth of this optical fiber cable can achieve 1000Mhz.Km when it is at the wavelength of 1300nm.
Standard

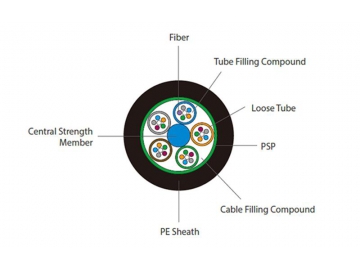

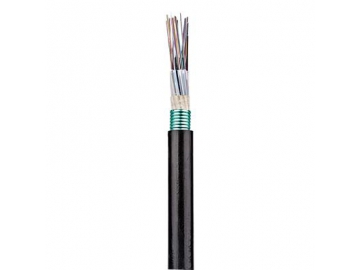

The structure of GYTA optical fiber armored cable is to combine the fiber optic whose radius is 250μm inside the loose tube which is made of high modulus materials. And the loose tube is filled with a waterproof compound. In the center of the cable core is a metal-strengthening core which is sometimes sheathed with PE for cables with a particular fiber count. The loose tube (and fillers) strands the central strength member to form a compact and round cable core. The waterproof fillers fill up the gap inside the cable core. The double-sided PSP is longitudinally wrapped and sheathed with polyethylene to form up cable.
| cable type (increase by 2 fibers) | fiber count | tubes | fillers | cable diameter (mm) | cable weight (kg/km) | tensile strength long/short term (N) | crush resistance long/short term (N/100mm) | bending radius dynamic/static (mm) |
| GYTS 2-6 | 2-6 | 1 | 4 | 9.2 | 80 | 600/1000 | 300/1000 | 10D/20D |
| GYTS 8-12 | 8-12 | 2 | 3 | 9.2 | 80 | 600/1000 | 300/1000 | 10D/20D |
| GYTS14-18 | 14-18 | 3 | 2 | 9.2 | 80 | 600/1000 | 300/1000 | 10D/20D |
| GYTS 20-24 | 20-24 | 4 | 1 | 9.2 | 80 | 600/1000 | 300/1000 | 10D/20D |
| GYTS26-30 | 26-30 | 5 | 0 | 9.7 | 97 | 1000/3000 | 300/1000 | 10D/20D |
| GYTS 32-36 | 32-36 | 6 | 0 | 9.7 | 97 | 1000/3000 | 300/1000 | 10D/20D |
| GYTS 38-48 | 38-48 | 4 | 1 | 10.5 | 109 | 1000/3000 | 300/1000 | 10D/20D |
| GYTS 50-60 | 50-60 | 5 | 0 | 10.5 | 109 | 1000/3000 | 300/1000 | 10D/20D |
| GYTS 62-72 | 62-72 | 6 | 0 | 11.5 | 126 | 1000/3000 | 300/1000 | 10D/20D |
| GYTS 74-84 | 74-84 | 7 | 1 | 13.2 | 153 | 1000/3000 | 300/1000 | 10D/20D |
| GYTS 86-96 | 86-96 | 8 | 0 | 13.2 | 153 | 1000/3000 | 300/1000 | 10D/20D |
| GYTS 98-108 | 98-108 | 9 | 1 | 14.6 | 182 | 1000/3000 | 300/1000 | 10D/20D |
| GYTS 110-120 | 110-120 | 10 | 0 | 14.6 | 182 | 1000/3000 | 300/1000 | 10D/20D |
| GYTS 122-132 | 122-132 | 11 | 1 | 16.5 | 221 | 1000/3000 | 300/1000 | 10D/20D |
| GYTS 134-144 | 134-144 | 12 | 0 | 16.5 | 221 | 1000/3000 | 300/1000 | 10D/20D |
| storage/operating temperature: -40℃ to +70℃ | ||||||||
| G652 | G655 | 50/125UM | 62.5/125UM | ||
| attenuation (+20℃) | @850nm | ≤0.30db/km | ≤3.3db/km | ||
| @1300nm | ≤1.0db/km | ≤1.0db/km | |||
| @1310nm | ≤0.36db/km | ≤0.40db/km | |||
| @1550nm | ≤0.22db/km | ≤0.23db/km | |||
| bandwidth (A grade) | @850nm | ≥500MHz.km | ≥200MHz.km | ||
| @1300nm | ≥1000MHz.km | ≥600MHz.km | |||
| numerical aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| cable cut-off wavelength (λcc ) | ≤1260nm | ≤1450nm | |||
| application: self-supporting aerial laying | |||||
- The GYTA optical fiber armored cable has great compressive resistance and softness.
- The GYTA optical fiber armored cable has great mechanical behavior and temperature characteristics.
- The material of the loose tube has great hydrolysis resistance and higher strength.
- A special grease fills up the loose tube to provide the fiber optic with critical protection.
- The especially designed and close-knit cable structure of GYTA optical fiber armored cable can prevent the casing from retracting effectively.
- The PE sheath has great anti-UV radiation performance.
The following measures are adopted to ensure the waterproof performance of the optical cables
- Single steel wire is used as the central strength member.
- Filling up the loose tube with special waterproof compound.
- 100% cable core filling
- Using double-sided PSP to improve the moisture resistance of the optical cables.
