GYFTY53 Optical Fiber Armored Cable
Description
The GYFTY53 optical fiber armored cable is a communication outdoor fiber cable used in self supported aerial laying. It uses a double sided sheath to strengthen its structure for a better compressive performance, and can be used under the environment where the temperature ranges from -40℃ to 70℃.
Standard

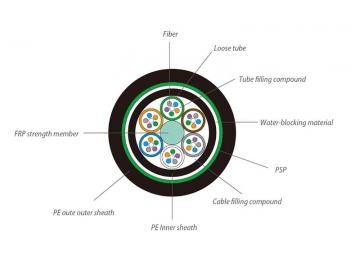

The structure of GYFTY53 optical fiber armored cable combines a fiber optic with a radius of 250μm inside the loose tube made of high modulus materials. The loose tube is filled with a waterproof compound, and it will strand FRP to form a compact and round cable core. A waterproof filler is added to the gap, and the cable core is then sheathed in a PE inner sheath. The APL is longitudinally wrapped and is extruded with a PVC inner sheath. The double-sided PSP is longitudinally wrapped and sheathed with polyethylene to form a cable.
| Cable type (increase by 2 fibers) | Fiber count | Tubes | Fillers | Cable diameter (mm) | Cable weight (kg/km) | Tensile strength long/short term (N) | Crush resistance long/short term (N/100mm) | Bending radius dynamic/static (mm) |
| GYFTY53 2-6 | 2-6 | 1 | 7 | 16.8 | 255 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY53 8-12 | 8-12 | 2 | 6 | 16.8 | 255 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY5314-18 | 14-18 | 3 | 5 | 16.8 | 255 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY53 20-24 | 20-24 | 4 | 4 | 16.8 | 255 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY53 26-30 | 26-30 | 5 | 3 | 16.8 | 97 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY53 32-36 | 32-36 | 6 | 2 | 16.8 | 255 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY53 38-48 | 38-48 | 7 | 1 | 16.8 | 255 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY5350-60 | 50-60 | 8 | 0 | 19.2 | 320 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY5362-72 | 62-72 | 9 | 1 | 19.2 | 320 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY53 74-84 | 74-84 | 7 | 1 | 19.2 | 153 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY53 86-96 | 86-96 | 8 | 0 | 19.2 | 320 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY53 98-108 | 98-108 | 9 | 1 | 21.2 | 380 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY53 110-120 | 110-120 | 10 | 0 | 21.2 | 415 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY53 122-132 | 122-132 | 11 | 1 | 22.3 | 415 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY53 134-144 | 134-144 | 12 | 0 | 22.3 | 415 | 1000/3000 | 1000/3000 | 10D/20D |
| storage/operating temperature: -40℃ to +70℃ | ||||||||
| G652 | G655 | 50/125UM | 62.5/125UM | ||
| Attenuation (+20℃) | @850nm | ≤0.30db/km | ≤3.3db/km | ||
| @1300nm | ≤1.0db/km | ≤1.0db/km | |||
| @1310nm | ≤0.36db/km | ≤0.40db/km | |||
| @1550nm | ≤0.22db/km | ≤0.23db/km | |||
| bandwidth (A grade) | @850nm | ≥500MHz.km | ≥200MHz.km | ||
| @1300nm | ≥1000MHz.km | ≥600MHz.km | |||
| numerical aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| cable cut-off wavelength (λcc ) | ≤1260nm | ≤1450nm | |||
| application: self-supporting aerial laying | |||||
Features
The GYFTY53 optical fiber armored cable has great mechanical behavior and temperature characteristic. The material features a great hydrolysis resistance and higher strength, and a special grease fills the loose tube in order to offer additional critical protection. It also features a great compressive resistance and softness.
The following measures have also been taken to ensure the waterproof performance of the optical cables
- Using the single steel wire as central strength member.
- Filling up the loose tube with special waterproof compound.
- 100% cable core filling
- Double-sided PSP improves the moisture resistance of the optical cables.
- Great waterproof materials prevent water from seeping into the cable.
