90mm 40W Brush DC Gear Motor Manufacturer

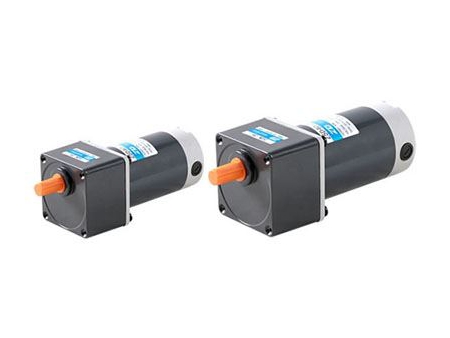

90mm 40W Brush DC Gear Motor

Request a Quote

View All: http://zd-drivers.com/2-1-7-brush-dc-gear-motor.html

Motor Specifications

Mode	Voltage	Power	No-load Parameters		Load Parameters			Brush Life	Motor Weight
	Voltage	Power	Speed	Current	Speed	Torque	Current	Brush Life	Motor Weight
	V	W	r/min	A	r/min	mN.m	A	H	kg
Z5D40-12	12	40	3100	2.0Max.	2800	136	5.2	2000	1.9
Z5D40-24	24	40	3000	1.0Max.	2800	136	2.6	2000	1.9
Z5D40-90	90	40	3200	0.3Max.	3000	127	0.7	2000	1.9

Gear Motor-Torque TableAllowance Torque Unit: N.m

Type Motor/Gearhead	Gear Ratio	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180
Type Motor/Gearhead	Speed r/min	373	311	224	186	155	112	93	77	56	46	37	31	28	23	18	15
Z5D40-24GU-28S	5GU()RC 5GU()RT	0.75	0.90	1.24	1.49	1.79	2.32	2.78	3.01	4.18	5.37	6.71	8.06	8.95	10.7	13.4	16.1
Z5D40-24GU-28S	5GU()RC 5GU()RT	7.65	9.18	12.6	15.2	18.3	23.7	28.4	30.7	42.6	54.8	68.4	82.2	91.3	109	137	164

Type	Gear Ratio	3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
Z5D40-24GN	Speed r/min	933	778	560	467	373	311	280	224	187	156	140	112	93	78	70	56	47	37	31	28	23	19	16	14
	5GN()K	0.33	0.40	0.55	0.66	0.83	0.99	1.11	1.38	1.66	1.79	1.99	2.49	2.98	3.58	3.58	4.48	5.37	6.71	8.06	8.95	10.0	10.0	10.0	10.0
	5GN()K	3.25	3.90	5.41	6.50	8.12	9.75	10.8	13.5	16.2	17.5	19.5	24.4	29.2	35.1	35.1	43.9	52.6	65.8	78.9	87.7	100	100	100	100

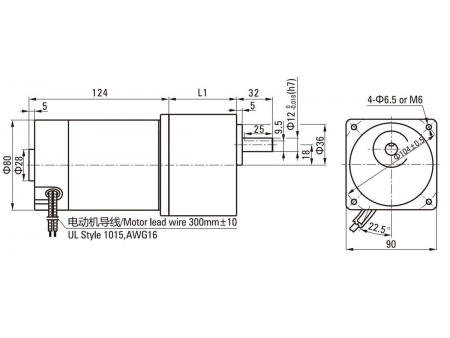

L1=42.5mm
