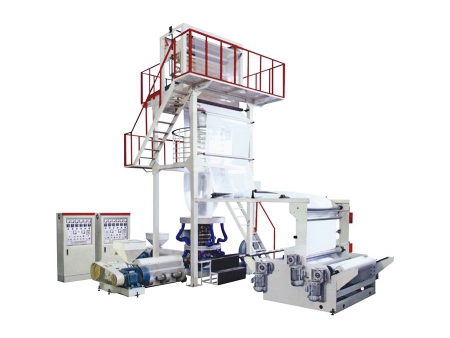

Three Layer Blown Film Machine
Request a Quote
Video
TPLAST has developed high-grade three layer blown film machines which met the needs of the 90s market. These film blowing machines have been designed optimally to match the same domestic and foreign lines. The blown film machines are able to blow continuous LDPE, HDPE, LLDPE, and MLLPE packaging films with a thickness of 0.02-0.15mm by horizontal extrusion up blowing. The film is heat resistant, humidity proof, wind proof, rain proof, rust proof, oxygen insulated, and oil resistant, making it perfect for light and hefty packaging of food items like fresh fruits, meat, vegetables, milk, and drinks.
Technical Parameters
| Model | SJ-45/TP600 | SJT-55/TP1000 | SJT-60/TP1200 | SJT-70/TP1500 |
| Screw diameter (mm) | 45/50/45 | 55 /60/55 | 60/65/60 | 65 /70/65 |
| Screw L/D ratio | 30:1 | 30:1 | 30：1 | 30:1 |
| Screw speed (r/min) | 110 | 110 | 110 | 110 |
| Power of main motor (kW) | 11/15/11 | 18.5/22/18.5 | 22/30/22 | 30/37/30 |
| Diameter of die (mm) | ¢120 | ¢200 | ¢250 | ¢350 |
| Thickness of film (mm) | 0.006-0.10 | 0.01-0.15 | 0.03-0.15 | 0.05-0.20 |
| Max. folding width of film (mm) | 600 | 1000 | 1200 | 1500 |
| Max. capacity (kg/h) | 70 | 100 | 120 | 140 |
| Total power (kW) | 80 | 105 | 125 | 140 |
| Weight (kg) | 5500 | 6500 | 7500 | 9800 |
| Dimensions (L*W*H, m) | 6.6*2.8*6 | 6.8*3*6.8 | 7*3.2*7.5 | 8.5*5*8.5 |
