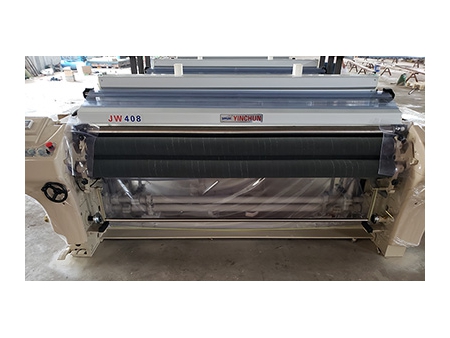

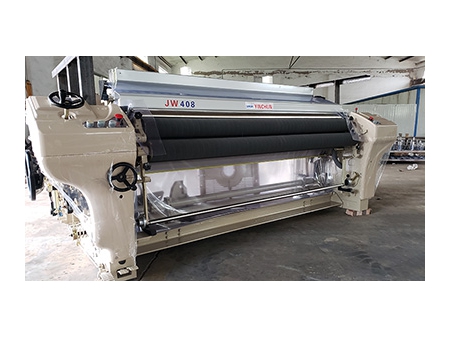

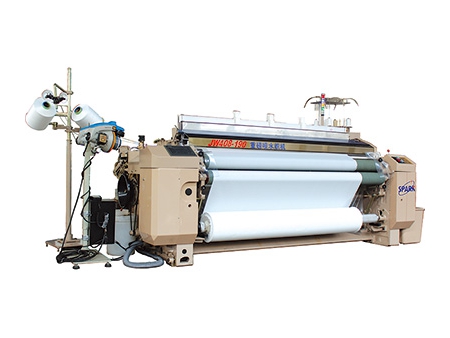

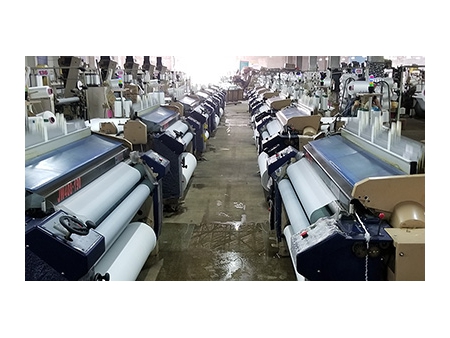

JW408 Water jet loom

Request a Quote

View All: http://machinery-weaving.com/2-1-jw408-water-jet-loom.html

Spark’s JW408 water jet loom features an innovated machine structure and moving parts, as well as highly integrated mechanical components and an electronic control system. Compared to the JW822 water jet loom, the JW408 water jet loom’s rotation speed is higher at speeds of up to 900RPM. The water jet weaving machine provides higher versatility and operation functionality for manufacturing light and medium-weight fabrics.

Features

The beating mechanism has been improved to provide a greater machine vibration and noise level reduction, while significantly increasing machine stability and durability.
Separating the nozzle holder allows users to individually set the position and direction of each nozzle.
The water jet loom is equipped with a large-capacity electromagnetic brake and super-fast start-up motor (i.e. the motor can start up immediately to a normal speed).
A new energy-efficient nozzle reduces water consumption by up to 15%.

Technical specifications

Breadth(cm)	150, 170, 190, 210, 230, 280, 340, 360
Designed speed	600~900RPM
Power	2.2 KW, 2.8KW, 3.7KW
Weaving Range	Filament: 22 D- 1350 D
Weft selection	1 color, 2 colors, 3 colors or 4 colors
Loom beam disc diameter (mm)	800
Roller Diameter (mm)	550
Shedding	Plain shedding , Positive cam shedding ,Dobby shedding
Beating up	Double connection rod assembly four-bar beating-up
Selvedge	Raw edge, mechanical tuck-in selvedge
Let-off device	Electronic let-off
Take-up	Electronic take-up
