This SMD LED flood light from SHCET is constructed of die-casting aluminum with tempered glass lens. 2835 SMD LED chips produce bright and consistent illumination, giving an optimal lighting for different locations, such as buildings, billboards, sports facilities, carnivals, etc.

CET-108A-10W SMD LED Flood Light
Model: CET-108A-10W
Power: 10W
Lamp Size(mm): 124x110x37mm
IP degree: IP66
LED Chips Quantity(pcs): 20pcs SMD
Lamp Flux(LM): 1100LM
Diffuser: Aluminium or PC

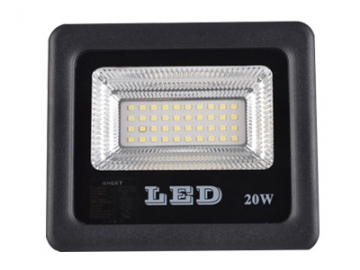

CET-108A-20W SMD LED Flood Light
Model: CET-108A-20W
Power: 20W
Lamp Size(mm): 146x126x37mm
IP degree: IP66
LED Chips Quantity(pcs): 40pcs SMD
Lamp Flux(LM): 2200LM
Diffuser: Aluminium or PC

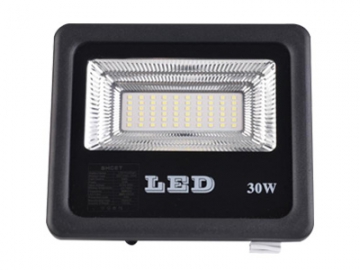

CET-108A-30W SMD LED Flood Light
Model: CET-108A-30W
Power: 30W
Lamp Size(mm): 195x165x40mm
IP degree: IP66
LED Chips Quantity(pcs): 60pcs SMD
Lamp Flux(LM): 3300LM
Diffuser: Aluminium or PC
CET-108A-50W SMD LED Flood Light
Model: CET-108A-50W
Power: 50W
Lamp Size(mm): 230x195x56mm
IP degree: IP66
LED Chips Quantity(pcs): 100pcs SMD
Lamp Flux(LM): 5500LM
Diffuser: Aluminium or PC

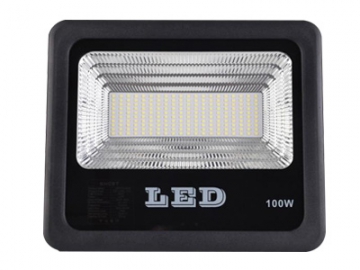

CET-108A-100W SMD LED Flood Light
Model: CET-108A-100W
Power: 100W
Lamp Size(mm): 297x250x57mm
IP degree: IP66
LED Chips Quantity(pcs): 200pcs SMD
Lamp Flux(LM): 11000LM
Diffuser: Aluminium or PC

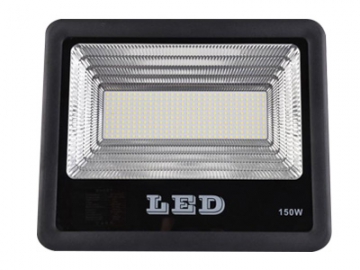

CET-108A-150W SMD LED Flood Light
Model: CET-108A-150W
Power: 150W
Lamp Size(mm): 335x290x57mm
IP degree: IP66
LED Chips Quantity(pcs): 300pcs SMD
Lamp Flux(LM): 16500LM
Diffuser: Aluminium or PC

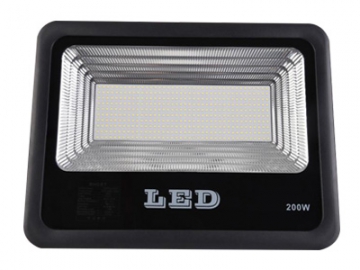

CET-108A-200W SMD LED Flood Light
Model: CET-108A-200W
Power: 200W
Lamp Size(mm): 428x328x65mm
IP degree: IP66
LED Chips Quantity(pcs): 400pcs SMD
Lamp Flux(LM): 22000LM
Diffuser: Aluminium or PC
CET-108A-300W SMD LED Flood Light
Model: CET-108A-300W
Power: 300W
Lamp Size(mm): 500x400x65mm
IP degree: IP66
LED Chips Quantity(pcs): 600pcs SMD
Lamp Flux(LM): 33000LM
Diffuser: Aluminium or PC

Details

Features

The flood lights use an IC (integrated circuit) constant current waterproof driver, and users can choose to equip the lights with dimming and timing functions. Each LED light features a stable current and a surge protection of up to 6,000V, all to ensure a safe usage.

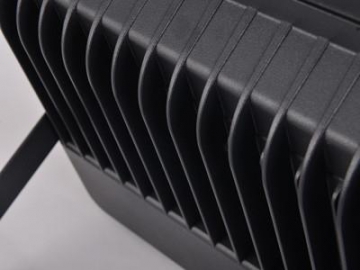

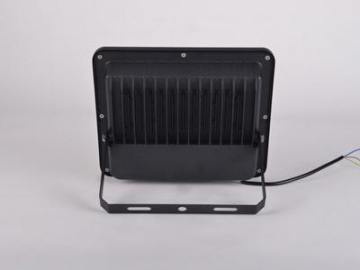

The LED light features an integrated die cast aluminum housing and light source design, making installation easy.

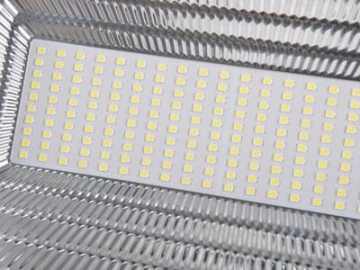

The light source is an LED chip with a high luminance, and features a low energy consumption and a low heat, with a service life of up to 50,000 hours.

Detailed Parameters

Lamp Material	Die Cast Aluminum + Glass
Beam Angle	120°
IP Rating	IP65 or IP66
Surge Protection	4-6KV
LED Chips	2835SMD 0.5W or COB
CRI	70-75 or 80-85
Power Factor	0.6-0.7 or 0.9-0.97
Input Voltage	AC85-277V or AC165-265V
Body Color	White, Black, customized
Color Temperature	3000-3500K, 4000-4500K, 5000-5500K, 6000-6500K;
Diffuser	Aluminum or PC

Note: The diver has dimmable and non-dimmable types.
