LED Light Sheets

Request a Quote

View All: http://ledstrip-lightings.com/2-led-light-sheets.html

LED light sheets are equipped with LEDs in high density for extremely high brightness, available with white or multicolor. The lighting sheets can be cut to almost every shape, making them applicable to illuminating curved, sloped, or large objects. Intuitive, plug and play connections ensures reduced installation time and cost.

Main Features

Equipped with high brightness LEDs
Features LEDs mounted on PCB or FPC with high flexibility
Built-in controller for adjusting brightness

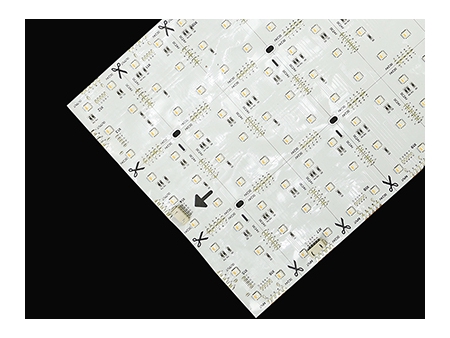

Marked cut lines for easy cutting and connection
Quick wiring connections
No LED luminosity attenuation
Applies constant current and constant voltage LED driver
Fast-drying silicone spray sealant or waterproof fabric for protecting
LEDs from moisture and corrosion

Designed with XH-2Y/3Y wire connector
Can connect with remote for controlling the lighting pattern
Various specifications available
Customized CCT
Working temperature (℃): -20～ 60
Storage temperature (℃): -20～ 70
Certifications: UL Listed, CE
3M adhesive backing or screw for installation

H150-W-CNH2835 LED Light Sheet, 2600-6800K White, 3-26 W/m

CCT: 2600-6800K
Lumens: 159-3162 lm per meter
Watts: 3-26 W/m
Voltage: 12/24VDC
IP Rating: IP22/IP64
3-Year Warranty

H150-WN-TN-2835 White LED Light Sheet, 2700-6500K, 13-46W/m

CCT: 2700-6500K
Lumens: 1048-4285 lm per meter
Watts: 13-46W/m
LED: 324/576 SMDs per meter
Voltage: 24VDC
IP Rating: IP22/IP64
3-Year Warranty

H150-RGB-TN4040 LED Light Sheet, RGB, 30/52 W/m

CCT: R: 615-630K; G: 515-530K; B: 460-470K
Lumen: 117-1710 lm per meter
Watts: 30/52 W/m
LED: 162/288 SMDs per meter
Voltage: 24VDC
IP Rating: IP22/IP64
3-Year Warranty

H150-RGBW-TN-F5050 LED Light Sheet, RGB, 14.4 W/m

CCT: R: 620-630K; G: 515-530K; B: 460-470K
Lumens: 97.2-583 lm per meter
Watts: 14.4W/m
LED: 162 SMDs per meter
Voltage: 24VDC
IP Rating: IP22/IP64
3-Year Warranty

H150-D3-DN4040-288-24-W2 LED Light Sheet, RGB, 31/72 W/m

CCT: R: 620-630K; G: 515-530K; B: 460-470K
Lumen: 330-2343 lm per meter
Watts: 31/72 W/m
LED: 288 SMDs per meter
Voltage: 24VDC
TTM1914 IC
6 LEDs per cut
FPC material, flexible and bendable
Quick XH-2Y & PH-2 connector
Easy installation by tape and screws
Customizable in size, color, power, and logo, etc.

H150-RGBW-FN-F5050-162-24 LED Light Sheet, RGB

CCT: R: 620-630K; G: 515-530K; B: 460-470K
Lumen: 97-1218 lm per meter
LED: 162 SMDs per meter
Voltage: 24VDC
4 in 1 with colors of red, green, blue and warm white
Flexible and cuttable every 80.0*53.3mm
Long lifespan with great lumen maintenance
Create multi-color changing effect via controller
Dimmable with PWM technology

NW-B-P10 LED Light Sheet

LED: 2835 SMDs per meter
Lumen: 250-2000 lm per meter
Watts: 3.2-26W
Voltage: 5VDC
Light source is 2.5-3cm away from the canvas, suitable for light boxes with a thickness of 6cm or more
Highly modular, easy to install and maintain

NW-B-P10NW-B-P6.5 LED Light Sheet

Lumen: 1100/2000 lm per meter
Watts: 13/26W
LED: 2835 SMDs per meter
Voltage: 5VDC
Significantly increase lifespan of LED through low voltage and low current with ultra-low temperature operation
Light source is 2.5-3cm away from the canvas, suitable for light boxes with a thickness of 6cm or more
Highly modular, easy to install and maintain

Applications

The flexible LED lighting sheets are suitable for mounting in LED lattice lights, LED side lighting modules, LED light boxes, and LED cylinder lights.
