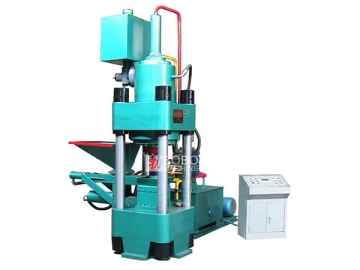

Vertical Metal Chip Briquetting Press
Request a Quote
View All: http://foam-spraying.com
The vertical metal chip briquetting press is more efficient for processing denser briquette as opposed to the horizontal model. BOBO supplies all necessary parts that comes with the briquetting machine.
Technical Specifications
| Model | Main cylinder diameter (mm) | Briquet size (mm) | Density (T/m³) | weight (kg) | pcs /min | Ton/8hours | Motor power (kw) |
| 280 | Φ85×(60~80) | ≥5.0 | 2.5~3 | 4 | 4~5 | 18.5 | |
| 340 | Φ90×(60~90) | ≥5.2 | 2.5~3 | 5 | 5.5~6.5 | 22 | |
| 360 | Φ100×(70~100) | ≥5.5 | 3~4 | 5.5 | 8~11 | 30 | |
| 400 | Φ120×(80~110) | ≥5.5 | 3.5~5 | 5 | 10~12 | 37 | |
| 450 | Φ120×(80~110) | ≥5.5 | 5~6 | 5 | 12~15 | 45 | |
| 520 | Φ140×(100~120) | ≥5.5 | 7~10 | 4.5 | 15~22 | 45 |
BOBO Machine is a specialized vertical metal chip briquetting press manufacturer in China. We provide a wide array of products, including stainless steel flatware machine, flexible duct machine, PU Foam Injection Machine, and more.
