Description

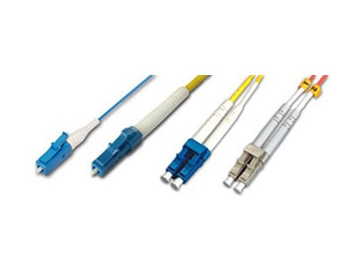

Our fiber optic patch cords and patch cables can be divided into FC, SC, LC, MU, ST and more. with high quality ceramic ferrules, good consistency and low insertion loss, our products can be used in telecommunication networks, data transmission, testing equipment, CATV, LAN and other applications.

Applications
1. Optical fiber communication system
2. Optical fiber access network
3. Optical fiber CATV
4. Optical fiber testing equipment
5. Optical fiber data communication

Performance index
Type Multi fiber
Diameter of fiber core (um) 50/125 62.5/125
Cable diameter (mm) φ0.9, φ2.0, φ3.0
End face type PC
Insertion loss (dB) <0.2
Return loss (dB) >35
Repeatability (dB) ≤0.1
Interchangeability (dB) ≤0.1
Insert and draw frequency (times) ≥500
Working temperature (℃) -40~80

Functional characteristics
1. Low insertion loss and high return loss
2. Good repeatability and interchangeability
3. Suitable for high speed and high capacity optical fiber transmission system.
4. Single mode and multimode fiber patch cables and patch cords, and tail fibers can be provided.
5. The diameter of optical fiber cable: 0.9mm, 2.0mm, 3.0mm
6. Length or type: based on customer requirements

Xinhaixun offers customers a variety of fiber optic passive components, a specialized multi fiber patch cable and patch cord manufacturer and supplier, we are offering a wide range of fiber beam splitters, optical adapter, optical coupler, WDM, MPO connector. Use quality manufacturing and testing equipment, we provide quality multimode optical fiber cable for fiber optic communication and networking applications.
