Introduction

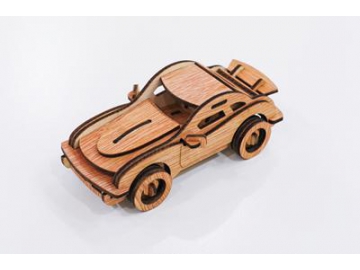

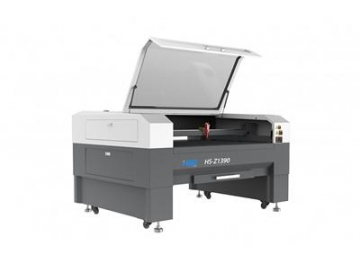

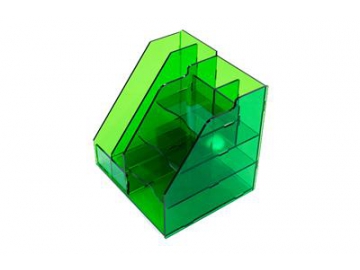

Equipped with a professional CO2 laser tube, the Z1390 laser cutting machine can process acrylic sheets, plywood, plastic boards, wood boards and other non-metallic materials- all with a quick speed and smooth cut-edge. Because of this, it is often used to manufacture acrylic display shelves and invitations.

Application

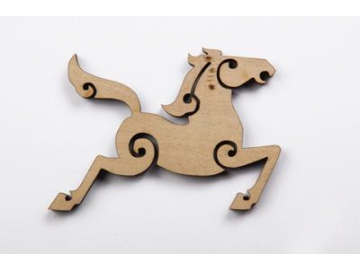

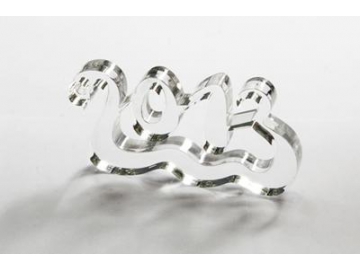

Applicable materials: Acrylic sheets, plastic sheets, plywood, wood boards and other wood types

Application industry: this cutter is widely used for advertising industries, crafts, stationary, and toys

Technology parameter

Processing Area	1300mm×2500mm
Laser Power	60W-150W
Max. Cutting Speed	20m/min
Max. accelerated	0.2G
X/Y Positioning Accuracy	0.1mm/m
X/Y Repeated Positioning Accuracy	±0.1mm
Power supply	220V/50Hz
Whole machine weight	400Kg
Machine dimensions	2020mmx1440mmx1150mm

* We can customize the processing width to be 1300mm×1300mm, 1300mm×900mm, 1600mm×1000mm, 900mm×600mm, or 600mm×400mm.
** We can provide laser system with various power levels. Material and thickness requirements depend on the laser power

Compatible Materials

Plywood
Plastic
Wood
Cardboard
Foam
Acrylic
MDF
Polyester
Polyethylene
Polyimide
PVC

Component details

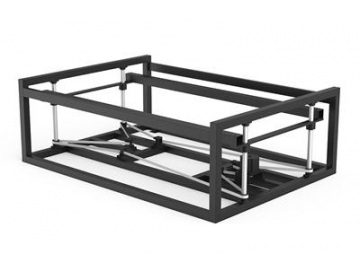

Lift platform
We provide the cutter models equipped with a lift platform to cut non-metallic products like boxes.

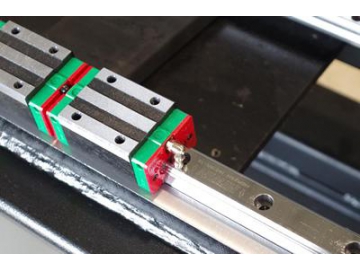

Guide rail
The straight guide rail from Taiwan's HIWIN guarantees the cutting precision.
