3 Station Plastic Vacuum Forming Machine (PP/PET/PS/PVC)

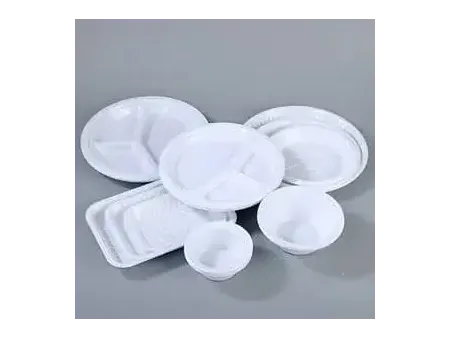

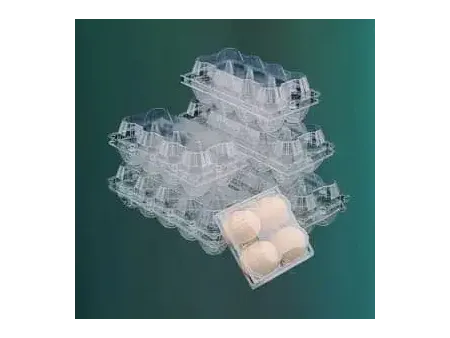

This three-station plastic vacuum forming machine uses negative vacuum pressure for molding. It is suitable for processing PS, PP, PVC, PET, HIPS, PC, and other plastic sheets into a wide range of shapes, including transparent, round, square, and irregular products. The roll-fed three-station thermoforming machine is ideal for producing various types of packaging such as boxes, plates, trays, bowls, lids, and more, with applications across food packaging, cosmetic packaging, industrial packaging, and general-purpose plastic products.
| Model | | |
| Max. forming area | 720×760mm | 720×850mm |
| Forming pressure | Negative vacuum pressure | |
| Applicable material | PET/PP(mix PE)/PS/PVC/ABS/PC | |
| Sheet thickness | 0.2-1.8mm | |
| Forming height | Female mold 0-80mm Male mold 0-150mm | |
| Production speed | 10-15 cycles/min | |
| Mold moving upward | Electric | |
| Eject-die | Shake to mould-down | |
| Power consumption | 25-40kW/hr | |
| Vacuum pump power | 4.0kW/150m³ | |
| Servo motor | 4.5/5.5/7.5kW | |
| Cutting force | 60t | |
| Cutting length | 11m | |
| Air consumption | 6.5kg/cm 1000-1500 liters/min | |
| Power supply | 380V 50Hz | |
| Machine dimensions (L×W×H) | 10000×2750×2660mm | 11000×2850×2660mm |
| Machine weight | 8500kg | 9500kg |
- Roller
- Heating
- Forming
- Cutting
- Stackng
- Rewinding
- Material feeding
- Heating
- Forming
- Cutting
- Stacking
- Rewinding
-
- 1
A machine integrating forming, punching, cutting and stacking functions.
Supports three-station punching of circular holes in the base. -
- 2
Customers may select moulding dies made from plaster, copper or aluminium according to market demand and order requirements. Cutting dies may also be chosen from wooden or aluminium options, greatly facilitating independent market development and reducing production costs.
-
- 3
Moulds compatible with conventional vacuum forming machines may be utilised on this equipment, enabling traditional vacuum forming factories to avoid mould wastage.
-
- 4
Four-guide roller design with servo motor control ensures stable punching and cutting with balanced power
-
- Touchscreen control panel
-
- Vacuum pump
-
- Servo system
-
- Ceramic infrared heater
-
- User-friendly touchscreen interface for full machine control
- Large memory capacity with strong data storage functions
- Supports storage of 170 sets of formula data
HMI touchscreen -
- Automatic loading system powered by air cylinder
- Stable and precise sheet feeding
- Max. feed roll diameter of 800mm, 600kgs/roll
Material loading -
- Heating oven made of heat-resistant stainless steel
- Equipped with imported fire-resistant wires and high-frequency ceramic connectors
- Multi-zone ceramic heating tiles with maximum power output of 30 kW
Heating system -
- Max. machine forming size of 720×850mm , mini forming width of 450mm ,
- Max. forming height of 150mm
- Upper and lower mold driven by servo motor (Delta , Taiwan)
- Mould cooling relies on an internal water circulation system, supplemented by external spray gun mist and forced air ventilation.
Forming station -
- Options of wooden or alumium cutting mold are available
- Movable cutting blades for precise product positioning
- Product base perforation can be synchronously achieved on punching moulds.
- Support bottom hole punching
Cutting station -
- Provides two methods: internal mould gripping or external stacking
- Guiding rails driven by 1.5kW servo motor (Delta, Taiwan)
- Automatic suction system for sorting and stacking products
Stacking station -
- Automatic rewinding of waste film
- Controlled by torque motor for consistent operation
- Support connection with online crusher
Scrap rewinder -
- Electrical components are from Delta, Schneider, Meiji ,Omron, Honeywell, SMC, CKD etc.
- Includes emergency stop button for safety
- Optimized electrical design for stable and reliable machine operation
Electrical cabinet
- ATM-72/85 3 Station Vacuum Forming Machine For Fruit Box with Fresh Air Hole
- ATM-72/85 3 Station Vacuum Forming Machine For Seedy Tray
- ATM-72/85 3 Station Vacuum Forming Machine For Blister Packing Tray
