Air-Cooled Silent Diesel Generators (Single Cylinder)
Request a Quote
5kW-8kW Diesel Genset
5kW-8kW Diesel Genset
- Prime Power 5/6/8 kW
- Rated Voltage 220V
- Phase Single phase
- Engine Type 1 cylinder, air-cooled, direct injection
Features
- Powered by a vertical, single-cylinder, 4-stroke engine with forced air cooling, this air-cooled silent genset offers low emissions, stable performance, and a long service life—perfect for residential or light commercial backup power.
- Equipped with a high-performance pure copper alternator and an automatic voltage regulator (AVR) to ensure stable output and reliable excitation.
- The silent diesel generator is constructed with a reinforced structure, ensuring durability, featuring a heavy-duty frame composed of thickened steel tubing and integrated caster wheels, rendering it robust while facilitating mobility.

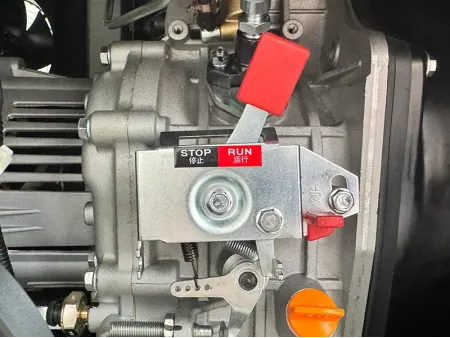

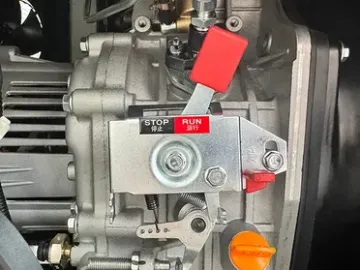

- The diesel genset offers multiple safety protections, including a low oil shutdown system and an overload protection breaker, to ensure user safety and extend engine life.
- Specially designed with an optimized silencing system that delivers quieter operation, making it suitable for use in noise-sensitive environments.
Product Details
Specifications
| Genset Model | | | | |
| Alternator | Excitation Mode | Brushed, self-excitation, AVR (automatic voltage regulation) | ||
| Prime Power (kW) | 6 | 8 | 5 | |
| Standby Power (kW) | 6.5 | 8.5 | 5.5 | |
| Rated Voltage (V) | 220 | 220 | 220 | |
| Frequency (Hz) | 50 | 50 | 50 | |
| Phase | Single phase | |||
| Power Factor (COSφ) | 1 | 1 | 1 | |
| Insulation Class | F | F | F | |
| Engine | Engine Model | KD192FE | KD1100FE | KD188FE |
| Bore Size×Stroke (mm) | 92×75 | 100×85 | 88×75 | |
| Displacement (cc) | 499 | 667 | 456 | |
| Engine Type | 1 cylinder, air-cooled, direct injection | |||
| Fuel Type | Diesel | |||
| Oil Capacity (L) | 1.5 | 2 | 1.5 | |
| Starting System | Electric Start | |||
| Genset | Fuel Tank (L) | 20 | 25 | 25 |
| Noise Level (dBA/7m) | 78 | 78 | 78 | |
| Dimension (mm) | 1000×650×735 | 1000×650×735 | 1000×650×735 | |
| Weight (kg) | 190 | 202 | 185 | |
Automatic Transfer Switch (ATS)
The generator is compatible with a fully automatic ATS control panel, which features status indicators for utility power, generator operation, automatic mode, and fault alarms.
When the ATS detects a utility power outage, the generator will start automatically, and the ATS will transition the power supply to the generator. Once utility power is restored, the system will implement a delay shutdown period of 30 to 60 minutes, after which the ATS will automatically switch back to grid power.
The ATS configuration guarantees an uninterrupted power supply with seamless transitions during outages.
