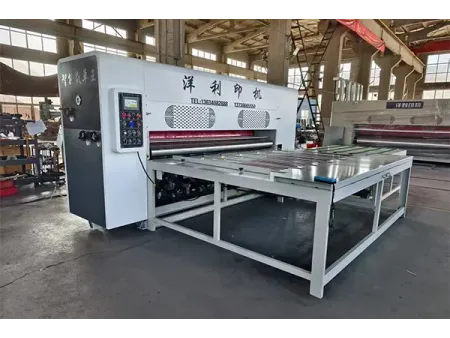

Corrugated Cardboard Die Cutting Machine with Chain Feeder, CZYL-RDC

Request a Quote

Website: http://corrugatedline-en.com/2-9-corrugated-cardboard-die-cutting-machine.html

Corrugated Cardboard Converting Machines

The corrugated cardboard die cutting machine with chain feeder is a specialized corrugated cardboard die cutting machine designed to handle color boxes, cartons, and irregular-shaped packaging products with precision and speed. It combines rotary cutting efficiency with advanced feeding and control systems to deliver consistent, high-quality results.

Features

Specialized for Die Cutting
Designed for precise shaping of color boxes, cartons, and various irregular packaging products.

Efficient Rotary Cutting
Uses a dual-roller rotary pressing system with urethane soft templates. Die-cutting speed automatically synchronizes with line speed, completing edge trimming, slot cutting, punching, and creasing in one pass.

Vacuum Paper Feeding
Equipped with vacuum-assisted paper feeding for stable and accurate sheet transfer.

High Precision & Speed
Main drive uses electromagnetic speed control, with computer-adjusted die-cutting phase for high accuracy, fast performance, and easy operation.

Specifications

Model	920	922	1224	1228	1426	1628
Max. speed (sheets/min)	60	60	60	60	60	60
Paper feeding accuracy (mm)	±0.5	±0.5	±0.5	±0.5	±0.5	±0.5
Min. sheet size (mm)	220×500	220×500	320×600	320×600	350×600	350×600
Max. sheet size (mm)	900×2000	900×2200	1200×2400	1200×2800	1400×2600	1600×2800
Min. slotting size (L×W×H) (mm)	170×80×80	170×80×80	180×80×80	180×80×80	180×80×80	180×80×80
Max. slotting depth (mm)	230	230	310	310	370	410
Max. slotting depth (mm)	Additional knifes can be added to increase slotting depth
Slotting accuracy (mm)	±0.5	±0.5	±0.5	±0.5	±0.5	±0.5
