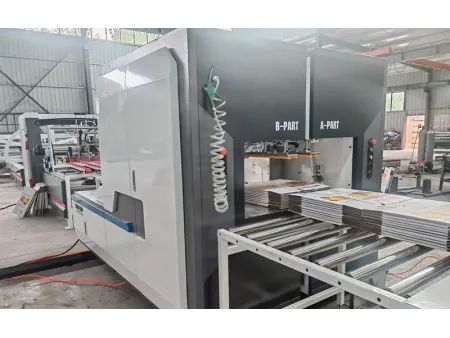

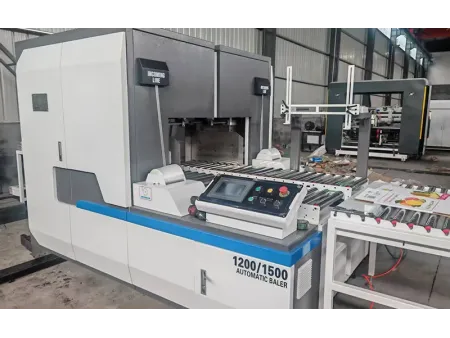

Strapping Machine for Corrugated Cardboard
Request a Quote
Technical Specifications
| Model | DY-1300 |
| Main machine dimensions (LxWxH) | 2620x(2300-3300)x2000mm |
| Paper feeding tray dimensions (LxWxH), | 1200x1000x870mm |
| Receiving tray dimensions, extendable (LxWxH), | (500-1500)x620x860mm |
| Packing size (LxWxH) | L: 450-1500mm, W: 300-1280mm, H: 80-280mm |
| Total motor power | 2.75kW |
| Machine weight | 2.2t |
| Working air pressure | 0.6-0.8MPa |
| PE strapping belt width | 35-50mm |
| Size adjustment | Electric |
| Power | 1.8kW |
