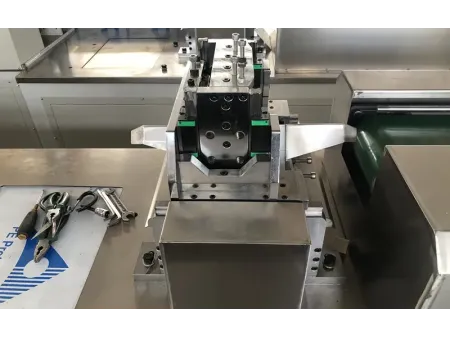

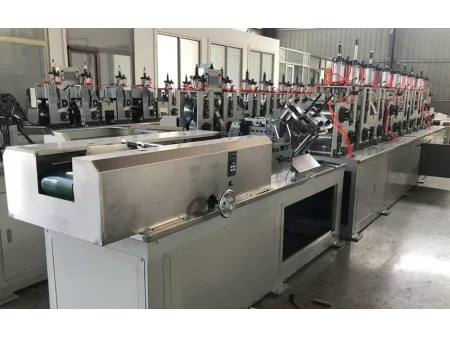

Cardboard Corner Protector Machine
Request a Quote
Technical Specifications
| Cardboard corner width | 20-100mm |
| Cardboard corner length | 30-9000mm |
| Cardboard corner thickness | 2-8mm |
| Production speed | 0-40m/min, 0-60m/min |
| Control mode | CNC control |
| Main motor power | 7.5kW 4.3kWx2 |
| Raw material – surface paper | 150-220g/m² |
| Raw material – core paper | 300-700g/m² |
| Cutting mode | Servo tracking cutting |
| Number of operators | 1-2 |
| Machine dimensions (LxWxH) | 9300x700x1400mm |
| Installation area (LxW), m | 28x3 |
| Machine weight | 2975kg |
| Total weight | 5715kg |
