Thin-film-transistor liquid-crystal display Module

STONE Tech’s advanced TFT LCD display module (STVA series) has a maximum brightness of 1000 nits, making it easily readable even in sunlight. It also features a service life of 50000 hours and a size range of 3.5”~15.1”, meeting customer requirements for outdoor applications. This product series has the highest configuration among our three product series.

Application

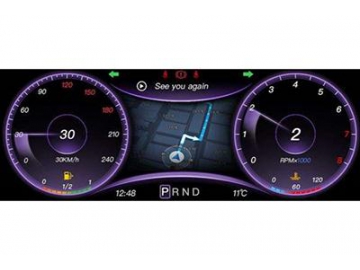

HMI panel in dashboard

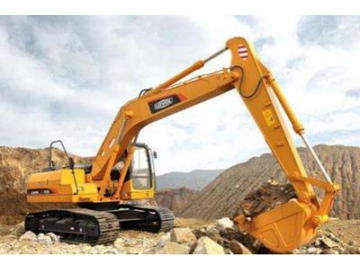

HMI panel in agricultural equipment

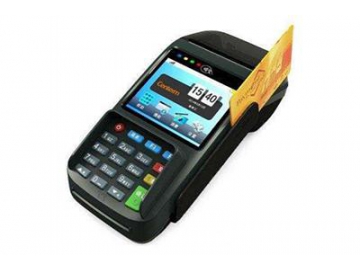

HMI panel in POS

Model recommendation

Size (inch)	Model	Colour	Resolution	Voltage(V)	Perpherals	Interface	Brightness	Temp(℃)	Viewing Area (mm)	Power (W)
3.5''		65K	320*240 (4:3)	DC 6.0-40	Touch-Screen &KB&RTC	RS232/USB	1000cd/m²;	-20℃/+70℃	70.1*53.8	0.8
		(16 bit)
4.3''		65K	480*272 (16:9)	DC 6.0-40	Touch-Screen &KB&RTC	RS232/USB	1000cd/m²;	-20℃/+70℃	95.0*53.9	1
		(16 bit)
5''		65K	800*480 (16:9)	DC 6.0-40	Touch-Screen &KB&RTC	RS232/USB	800cd/m²;	-20℃/+70℃	108.0*64.8	2.4
		(16 bit)
7''		65K	800*480 (16:9)	DC 6.0-35	Touch-Screen &KB&RTC	RS232/USB	1000cd/m²;	-20℃/+70℃	154.1*85.9	2.6
		(16 bit)
8''		65K	800*600 (4:3)	DC 6.0-40	Touch-Screen &KB&RTC	RS232/USB	900cd/m²;	-20℃/+70℃	162.0*121.5	2.8
		(16 bit)
10.1''		65K	1024*600 (16:9)	DC 6.0-40	Touch-Screen &KB&RTC	RS232/USB	1000cd/m²;	-20℃/+70℃	222.7*125.3	3
		(16 bit)
12.1''		65K	800*600 (4:3)	DC 10.8-40	Touch-Screen &KB&RTC	RS232/RS485/USB	300cd/m²;	-20℃/+70℃	246.0*184.5	6
		(16 bit)
15.1''		65K	1024*768 (4:3)	DC 10.8-40	Touch-Screen &KB&RTC	RS232/RS485/USB	300cd/m²;	-20℃/+70℃	304.1*228.1	6
		(16 bit)
