Water Suction and Discharge Hose with Flange Manufacturer

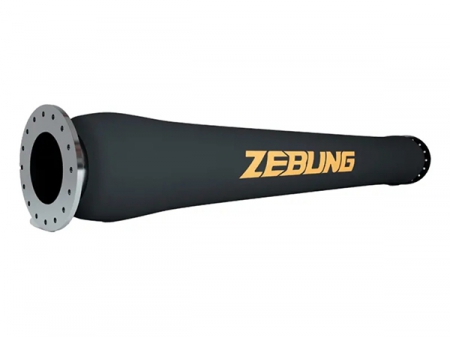

Water Suction and Discharge Hose with Flange

Request a Quote

View All: http://zebungmarinehose.com/3-2-2-water-suction-and-discharge-hose-with-flange.html

The rubber hose with flange features excellent elasticity, high compressive strength, and resistance to aging. It can withstand high pressure and large volume fluid transport, ensuring the safe and stable conveyance of water.

Basic Information

Inner tube: Natural SBR rubber compound (tensile strength ≥ 6MPa)
Reinforcement layer: Fabric cord wrapping Helical Steel Wire
Outer cover: Natural SBR rubber compound (tensile strength ≥ 9MPa)
Appearance: Smooth or corrugated surface
Operating temperature: -20°C to 80°C
Safety factor: 3:1
Color: Available in black, green, and various other colors
Flange material and standard: Customizable according to customer requirements

Applications

Agricultural Irrigation: Used in agricultural irrigation, rice paddies, orchards, vegetable plots, and other irrigation areas.
Construction: Applied in construction sites, bridges, tunnels, water conservancy projects, and various construction areas.
Wastewater Treatment: Utilized in urban wastewater treatment, sewage discharge, sewage treatment plants, and similar facilities.

Technical Parameters

Item Code	Inner Diameter		Working Pressure		Burst Pressure		Max. Length
Item Code	mm	inch	bar	psi	bar	psi	m
FWSD102-150	102	4"	10	150	30	450	12
FWSD127-150	127	5"	10	150	30	450	12
FWSD152-150	152	6"	10	150	30	450	12
FWSD203-150	203	8"	10	150	30	450	12
FWSD254-150	254	10"	10	150	30	450	12
FWSD304-150	304	12"	10	150	30	450	12
FWSD350-150	350	14"	10	150	30	450	12
FWSD400-150	400	16"	10	150	30	450	12
FWSD450-150	450	18"	10	150	30	450	12
FWSD500-150	500	20"	10	150	30	450	12
FWSD600-150	600	24"	10	150	30	450	12
FWSD102-300	102	4"	20	300	60	900	12
FWSD127-300	127	5"	20	300	60	900	12
FWSD152-300	152	6"	20	300	60	900	12
FWSD203-300	203	8"	20	300	60	900	12
FWSD254-300	254	10"	20	300	60	900	12
FWSD304-300	304	12"	20	300	60	900	12
FWSD350-300	350	14"	20	300	60	900	12
FWSD400-300	400	16"	20	300	60	900	12
FWSD450-300	450	18"	20	300	60	900	12
FWSD500-300	500	20"	20	300	60	900	12
FWSD600-300	600	24"	20	300	60	900	12

Note: specifications, pressures, colors and other parameters can be customized according to customers' requirements.
