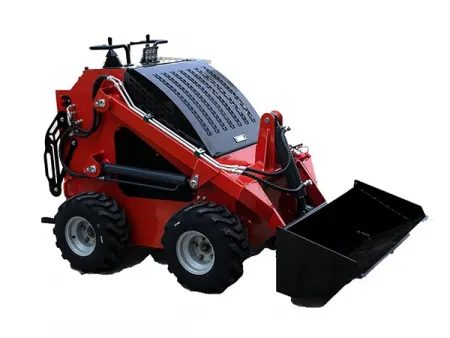

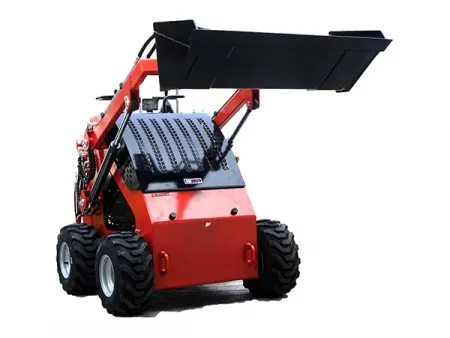

S460 Mini Skid Steer Loader
Request a Quote
Wheeled skid steer with rated operating capacity of 300kg for landscaping and road maintenance
- Dumping height
1510mm - Rated operating capacity
300kg - Bucket capacity
0.12m³ - Driving speed
0-6km/h
Specifications
| Vehicle height | 1300mm |
| Length with standard bucket | 2140mm |
| Vehicle width (standard tire) | 1120mm |
| Length without standard bucket | 1850mm |
| Bucket width | 1050mm |
| Tail length | 500mm |
| Height at maximum extension | 2400mm |
| Height to the bucket pin | 1870mm |
| Max. height as lay the bucket flat | 1720mm |
| Dumping height | 1510mm |
| Discharge distance | 250mm |
| Wheelbase | 800mm |
| Ground clearance | 110mm |
| Bucket flip angle on the ground | 27° |
| Bucket flip angle at highest position | 114° |
| Engine brand | Electric/Koop/Runtong/B&S |
| Rated power | 8kW (72V, 200Ah)/15kW/ 19.2kW/17kW |
| Number of cylinders | 2 |
| Air intake way | Naturally aspirated |
| Emission standard | EPA/EURO5 |
| Rated operating capacity | 300kg |
| Max. operating capacity | 400kg |
| Max. breakout force | 4.5kN |
| Bucket capacity | 0.12m³ |
| Driving speed | 0-6km/h |
| Total cycle time | 6.7s |
| System operating pressure | 17-21bar |
| Fuel tank capacity | 5L |
| Operating weight | 1200kg |
| Wheel size | 18×8.5-8 |
Features
- Multiple power configurations: Available with Koop 292, Runtong, or Briggs & Stratton engines, as well as an electric motor option, to suit various working environments
- Simplified central control console
- Hydraulic cylinder system
- Durable hydraulic hoses and elastic rubber materials
- LED headlights
- Supports multiple tools such as multi-purpose buckets and quick couplers for diverse tasks
Optional attachment
- Standard bucket
- Deep bucket
- Screening bucket
- Quick coupler
- Pallet forks
- Auger
- Snow plow blade
- Log grapple
- Round bale handler
- Square bale handler
- Flail mower
- Lifting boom / Crane Attachment
Detail Highlights
Instruction Manual
- Turn on the main power switch
- Increase the throttle to supply fuel
- Push the decompression lever
- Start the engine
- Push the control levers forward to move forward
- Pull the control levers backward to move in reverse
- Push the left control lever left, the boom raises
- Push the left control lever right, the boom lowers
- Push the right control lever left, the bucket curls up
- Push the right control lever right, the bucket dumps
- Attachment control valve
- Push one lever forward and pull the other backward to rotate the loader 360° in place.
