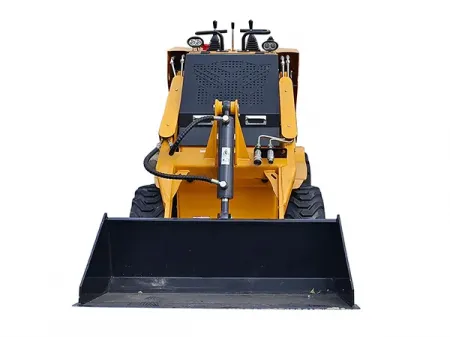

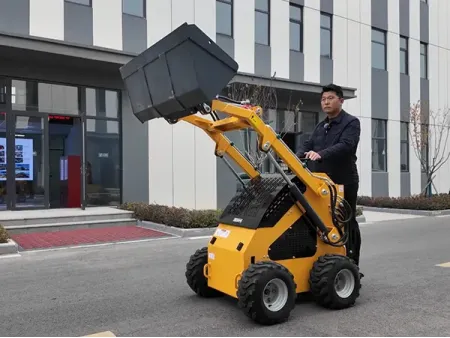

S360 Mini Skid Steer Loader
Request a Quote
Wheeled skid steer with rated operating capacity of 200kg for agriculture, light construction or landscaping operations
- Dumping height
1510mm - Rated operating capacity
200kg - Bucket capacity
0.12m³ - Driving speed
0-6km/h
Specifications
| Vehicle height | 1300mm |
| Length with standard bucket | 2070mm |
| Vehicle width (standard tire) | 980mm |
| Length without standard bucket | 1640mm |
| Bucket width | 1050mm |
| Tail length | 500mm |
| Height at maximum extension | 2400mm |
| Height to the bucket pin | 1870mm |
| Max. height as lay the bucket flat | 1720mm |
| Dumping height | 1510mm |
| Discharge distance | 250mm |
| Wheelbase | 750mm |
| Ground clearance | 130mm |
| Bucket flip angle on the ground | 27° |
| Bucket flip angle at highest position | 114° |
| Engine brand | Electric/Koop/ Runtong/ Zhongcheng/B&S |
| Rated power | 6kW(72V, 12.5Ah)/ 7.5kW/8.6kW/ 8.5kW/9.9kW |
| Number of cylinders | 1 |
| Air intake way | Naturally aspirated |
| Emission standard | EURO5/EPA |
| Rated operating capacity | 200kg |
| Max. operating capacity | 300kg |
| Max. breakout force | 3.5kN |
| Bucket capacity | 0.12m³ |
| Driving speed | 0-6km/h |
| Total cycle time | 6.8s |
| System operating pressure | 17-21bar |
| Fuel tank capacity | 5L |
| Operating weight | 900kg |
| Wheel size | 18×8.5-8 |
Features
- Multiple power options: Available with Koop 192, Runtong, or Briggs & Stratton engines, as well as an electric motor option, providing flexibility for different working conditions
- Central control system
- Hydraulic cylinders
- Equipped with wear-resistant hoses and elastic rubber materials for extended service life
- LED work lights
- Compatible with a wide range of tools and attachments
Optional attachment
- Standard bucket
- Deep bucket
- Screening bucket
- Quick coupler
- Pallet forks
- Auger
- Snow plow blade
- Log grapple
- Round bale handler
- Square bale handler
- Flail mower
- Lifting boom / Crane Attachment
Instruction Manual
- Turn on the main power switch
- Increase the throttle to supply fuel
- Push the decompression lever
- Start the engine
- Push the control levers forward to move forward
- Pull the control levers backward to move in reverse
- Push the left control lever left, the boom raises
- Push the left control lever right, the boom lowers
- Push the right control lever left, the bucket curls up
- Push the right control lever right, the bucket dumps
- Attachment control valve
- Push one lever forward and pull the other backward to rotate the loader 360° in place.
