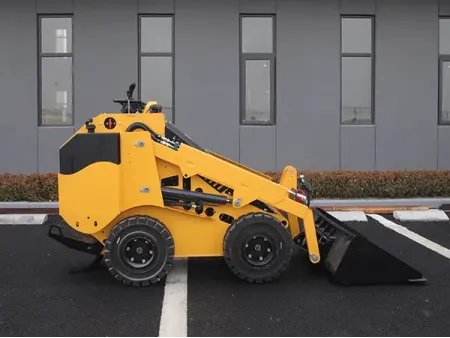

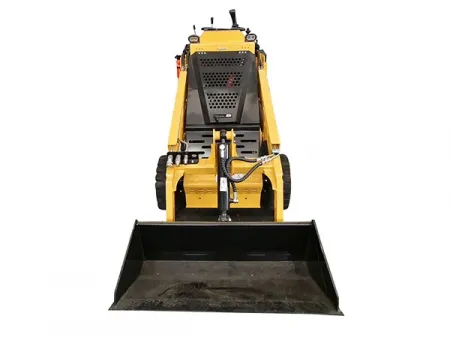

S750 Mini Skid Steer Loader
Request a Quote
Wheeled skid steer with rated operating capacity of 400kg for agricultural and construction sites
- Dumping height
1700mm - Rated operating capacity
400kg - Bucket capacity
0.15m³ - Driving speed
0-6km/h
Specifications
| Vehicle height | 1550mm |
| Length with standard bucket | 2700mm |
| Vehicle width (standard tire) | 970mm |
| Length without standard bucket | 2070mm |
| Bucket width | 1270mm |
| Tail length | 500mm |
| Height at maximum extension | 2920mm |
| Height to the bucket pin | 2300mm |
| Max. height as lay the bucket flat | 2000mm |
| Dumping height | 1700mm |
| Discharge distance | 150mm |
| Wheelbase | 860mm |
| Ground clearance | 240mm |
| Bucket flip angle on the ground | 27° |
| Bucket flip angle at highest position | 114° |
| Engine brand | Yanmar 380/Laidong 385/Electric |
| Rated power | 14kW (72V, 200Ah)/18.6kW/ 18.4kW/14kW |
| Number of cylinders | 3 |
| Air intake way | Naturally aspirated |
| Emission standard | EPA/EURO5 |
| Rated operating capacity | 400kg |
| Max. operating capacity | 450kg |
| Max. breakout force | 4.5kN |
| Bucket capacity | 0.15m³ |
| Driving speed | 0-6km/h |
| Total cycle time | 9s |
| System operating pressure | 25bar |
| Fuel tank capacity | 10L |
| Operating weight | 1200kg |
| Wheel size | 21×8-9 |
Features
- Equipped with optional Yanmar 380 or Laidong 385 engines, delivering strong and reliable power for demanding jobs
- Hydraulic pilot control system
- Hydraulic cylinders
- Durable hydraulic hoses with elastic rubber protection sleeves
- LED lighting system
- Compatible with multiple attachments for versatile operations
Optional attachment
- Standard bucket
- Deep bucket
- Screening bucket
- Quick coupler
- Pallet forks
- Auger
- Snow plow blade
- Log grapple
- Round bale handler
- Square bale handler
- Flail mower
- Lifting boom / Crane Attachment
