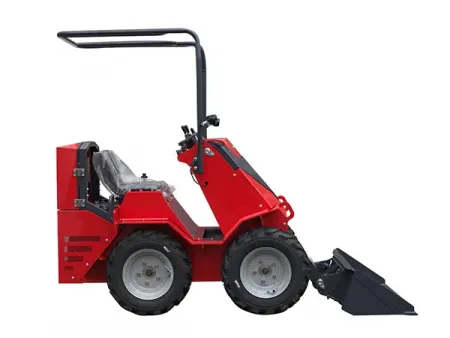

S390 Mini Skid Steer Loader
Request a Quote
Wheeled skid steer with rated operating capacity of 200kg for tight-area material handling and small-scale construction projects
- Dumping height
1470mm - Rated operating capacity
200kg - Bucket capacity
0.12m³ - Driving speed
0-6km/h
Specifications
| Vehicle height | 1250mm |
| Length with standard bucket | 2400mm |
| Vehicle width (standard tire) | 960mm |
| Length without standard bucket | 1900mm |
| Bucket width | 1050mm |
| Tail length | 220mm |
| Height at maximum extension | 2620mm |
| Height to the bucket pin | 2000mm |
| Max. height as lay the bucket flat | 1830mm |
| Dumping height | 1470mm |
| Discharge distance | 600mm |
| Wheelbase | 800mm |
| Ground clearance | 180mm |
| Bucket flip angle on the ground | 27° |
| Bucket flip angle at highest position | 114° |
| Engine brand | Electric/Koop/Runtong/Zhongcheng/B&S |
| Rated power | 6kW(72V, 12.5Ah)/7.5kW/8.6kW/ 8.5kW/9.9kW |
| Number of cylinders | 1 |
| Air intake way | Naturally aspirated |
| Emission standard | EPA/EURO5 |
| Rated operating capacity | 200kg |
| Max. operating capacity | 300kg |
| Max. breakout force | 3.5kN |
| Bucket capacity | 0.12m³ |
| Driving speed | 0-6km/h |
| Total cycle time | 9s |
| System operating pressure | 17bar |
| Fuel tank capacity | 5L |
| Operating weight | 1050kg |
| Wheel size | 23×8.5-12 |
Features
- Multiple power options: Available with Koop 192, Runtong, or Briggs & Stratton engines, as well as an electric motor option, offering flexibility for different applications
- Central control system
- Hydraulic system
- Built with wear-resistant hoses and elastic rubber parts to enhance reliability and service life
- LED lighting system
- Versatile attachment interface compatible with a variety of tools
Optional attachment
- Standard bucket
- Deep bucket
- Screening bucket
- Quick coupler
- Pallet forks
- Auger
- Snow plow blade
- Log grapple
- Round bale handler
- Square bale handler
- Flail mower
- Lifting boom / Crane Attachment

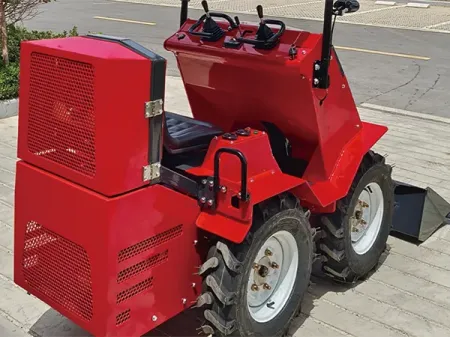

Detail Highlights
Instruction Manual
- Turn on the main power switch
- Increase the throttle to supply fuel
- Push the decompression lever
- Start the engine
- Push the control levers forward to move forward
- Pull the control levers backward to move in reverse
- Push the left control lever left, the boom raises
- Push the left control lever right, the boom lowers
- Push the right control lever left, the bucket curls up
- Push the right control lever right, the bucket dumps
- Attachment control valve
- Push one lever forward and pull the other backward to rotate the loader 360° in place.
