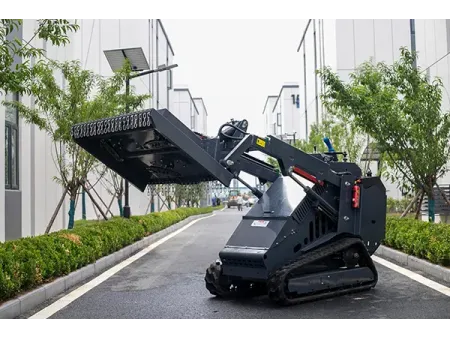

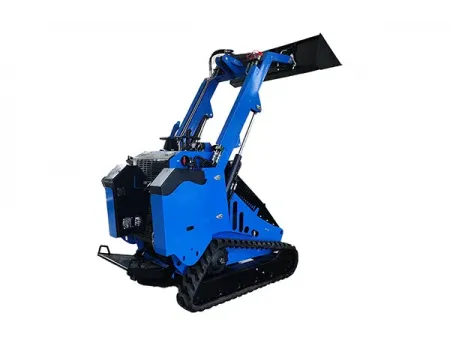

T750 Mini Skid Steer Loader
Request a Quote
Mini track loader with rated operating capacity of 400kg for agricultural, construction, and forestry applications
- Rated operating capacity
400kg - Bucket capacity
0.15m³ - Dumping height
1700mm - Discharge distance
500mm
Specifications
| Certification | ISO, CE, EPA, EURO5 |
| Engine brand | Electric/Laidong 385/Yanmar 380 |
| Rated power | 8kW (72V, 200Ah)/18.6kW/18.4kW |
| Number of cylinders | 3 |
| Air intake way | Naturally aspirated |
| Emission standard | EURO5/EPA |
| Rated operating capacity | 400kg |
| Max. operating capacity | 450kg |
| Max. breakout force | 4.5kN |
| Bucket capacity | 0.15m³ |
| Driving speed | 0-6km/h |
| Total cycle time | 9s |
| System operating pressure | 25bar |
| Fuel tank capacity | 30L |
| Operating weight | 1200kg |
| Track size (L×W×T) | 180×72×45mm |
| Vehicle height | 1550mm |
| Length with standard bucket | 2700mm |
| Vehicle width | 970mm |
| Length without standard bucket | 2070mm |
| Bucket width | 1270mm |
| Tail length | 500mm |
| Height at maximum extension | 2920mm |
| Height to the bucket pin | 2300mm |
| Max. height as lay the bucket flat | 2140mm |
| Dumping height | 1700mm |
| Discharge distance | 500mm |
| Track contact with ground length | 1300mm |
| Ground clearance | 200mm |
| Bucket flip angle on the ground | 27° |
| Bucket flip angle at highest position | 114° |
Features
- Powerful engine options: Equipped with a Yanmar 3TNV80 three-cylinder water-cooled diesel engine for reliable power output; Laidong 385 and electric drive systems are also available to meet varied working demands
- Hydraulic pilot control system
- Hydraulic system
- Wear-resistant elastic hoses for durability and flexibility under demanding field conditions
- LED lighting system
- Multi-functional attachment interface that allows quick connection of different tools
Optional attachment
- Standard bucket
- Deep bucket
- Screening bucket
- Quick coupler
- Pallet forks
- Auger
- Snow plow blade
- Log grapple
- Round bale handler
- Square bale handler
- Flail mower
- Lifting boom / Crane Attachment
Instruction Manual
- Push both control levers forward, the loader moves forward
- Pull both control levers backward, the loader moves backward
- Push the left control lever left, the boom lifts
- Push the left control lever right, the boom lowers
- Push the right control lever left, the bucket dumps
- Push the right control lever right, the bucket curls
- Push one lever forward and pull the other backward, the loader performs a 360° turn in place
