Our dental surgical lights offer a pure white or yellow light without affecting the color of teeth or gums. The LED light also features less effects on resin curing effects, thus prolonging the resin curing time and ensuring dentist comfort during repair work.

The soft LED light source also reduces discomfort in both doctors and patients. We offer LED dental surgical lights with UV radiation, and are equipped with a flat reflector and complete set of LED lamps. These lights are ideal for use in treatment applications within stomatology, otorhinolaryngology, facial features, and more. It is a special exam and surgery light, and for more information, please do not hesitate to contact us.

Some dental surgical light examples

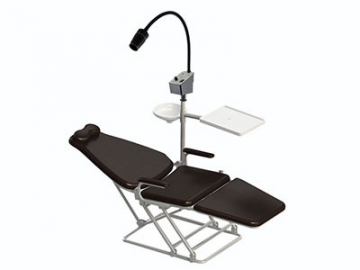

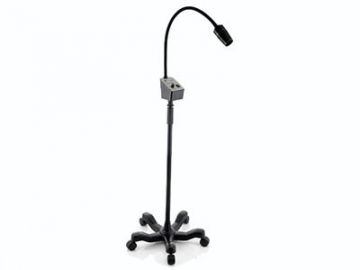

GEL-005A LED Portable Hi-brightness Dental Lamp

This dental surgical light is one of Haolang's newly developed patented products for dental lighting (patent number: 201521092899.0), and is specially designed for portable and mobile dental workbenches or simple dental chairs. With the unique design of detachable connectors, the loading and unloading processes are both easy and fast.

The product offers a square spot for dental and treatment. The uniformity and brightness of the spot can be continuously adjusted, with a maximum brightness of more than 15 000 Lux@700 mm.

We can customize the AC and DC dual power supply system according to the customer's requirements, thus avoiding any blackouts, and allowing it to be used during power outages or in areas with a poor power supply.

Parameters
  • Voltage:90V-250V/AC 50HZ-60HZ
  • Lamp power:5 W
  • Lamp life: 50000 hours
  • Color temperature:6000 K±500K or 4500 K±500K
  • Illumination:> 15000 Lux @700mm
  • Spot Size:70 x 70 mm (square)
  • CRI > 90
  • Net weight: 2 kg
  • Gross weight: 2.8 kg
  • Packing size:12 x 26 x 60 cm

LED Reflectance Dental Lamp

  • Depth of field: In a range of 450-850 irradiation distance, this product offers an excellent illumination and illumination spot.
  • The shadowless effect is better than standard Φ12, which is measured as Φ8, so the light is soft and will cause no eye discomfort.
  • A high color LED is used to make the object on the irradiated surface more realistic.
Optional Models
  • CX249-22 Dental Surgical Light
  • CX249-12 Dental Surgical Light
  • CX249-23 LED Dental Surgical Light
Model Input voltage Lamp power Illumination Light Spot Color temperature CRI Shadowless effect Illumination to eyes Sensing range Connector size
CX249-22 AC 12V 6-10W 35000lux 80x160mm 5000-6000k 0.85 φ12mm 200 lux 20-80mm φ22mm
CX249-12 AC 12v 3-8W 7000-42000lux 75x158mm 5300-5700k 0.85 Φ8mm 100 lux 20-80mm Φ22mm/Φ26mm
CX249-23 LED AC 12V 6-10W 35000lux 80X160mm (within 700mm) 5000-6000k 0.85 φ12mm 200 lux 20-80mm φ22mm

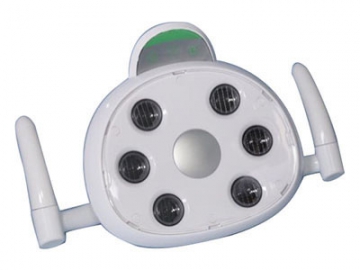

LED SH-10116 Dental Operating Light

The brightness of the dental operating light is adjusted steplessly by infrared induction, which makes it easy to maintain sanitation during the oral treatment process. The lighting effect is close to a natural light, ensuring the tooth color is more accurate and the patient will not be blinded.

The product warms up slowly, therefore it will not dry out the operating area and allows for long term usage.
Voltage:AC12-24V
Illumination:8000lux-25000lux
Color temperature: 5000k-5700k

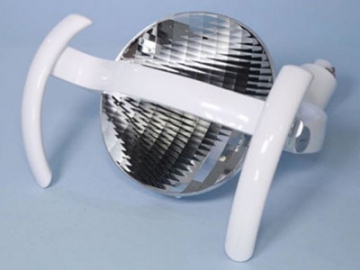

SH-10128 LED Dental Operating Light (with plane reflector)

The top of the back cover on the dental operating light is equipped with a flat reflector, which can be deployed and closed to ensure that when the light illuminates the oral cavity, the patient can observe his oral cavity intuitively at a reasonable observation distance. Six groups of lenses are distributed on a circumference larger than 150 mm, which ensures the shadowless effect at the lighted sites.

  • Voltage:AC12-24V
  • Power:16VA
  • Illumination:7000lux-50000lux (within 700mm)
  • Spot size:80mmx160mm @700mm
  • Color temperature : 4800-5500K
  • CRI > 85
  • Shadowless effect: <φ10 @50mm
  • Illumination to eyes <200lux
  • Net weight : 1452g
  • Sensing range : 20-80mm

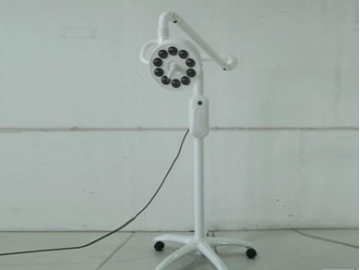

17#A LED Mobile Oral Lamp

This product has five wheels and mobile bracket, making it easy to move.

  • Voltage:AC12-24V
  • Color temperature:5000-5500K
  • Illumination:5000-30000lux
  • Focal length:700mm
  • Total power:25W
  • Lamp power: 15W

17#B LED Wall Type Oral lamp

The soft LED light source eliminates color splitting caused by the lens, which has a better shadowless effect and will reduce the discomfort of both doctors and patients.

  • Voltage:AC12-24V
  • Color temperature:5000-5500K
  • Illumination:5000-30000lux
  • Focal length:700mm
  • Total power:25W
  • Lamp power: 15W

SH-10128A LED Mobile Induction Oral Light

The LED mobile induction oral light uses inductive dimming to avoid cross infection.

  • Voltage:AC12-24V
  • Color temperature:5000-5500K
  • Illumination:5000-30000lux
  • Focal length:700mm
  • Total power:25W
  • Lamp power:15W
