B20D Series Double-station Blow Molding Machine
Request a Quote
This double-station blow molding machine has up to 6 die heads, allowing it to be used for the production of plastic bottles with a single or double layer and a volume of 5 to 30L, as well as with or without liquid level lines. With exquisite design and manufacturing, this blow molding machine provides outstanding extrusion effects at cost-effective prices.

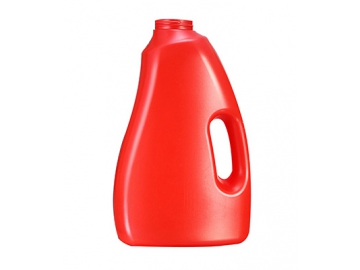

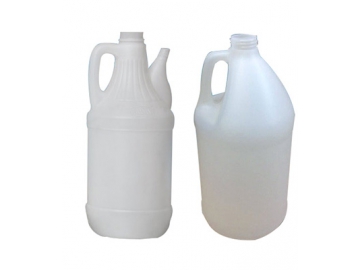

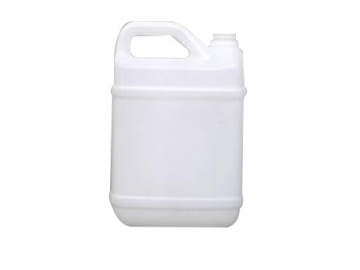

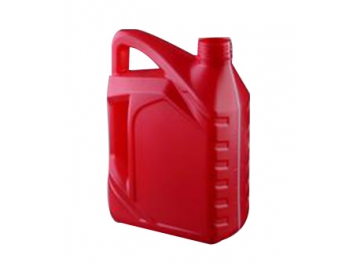

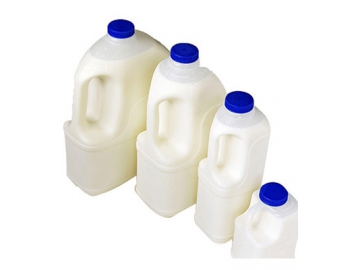

Samples
Technical Specification
| Model | B20D-750 | B20D-900 |
| Clamping Force | 200kN | 200kN |
| Hydraulic System Power Consumption | 30kW | 30kW |
| Mold Platen Opening/Clamping Stroke | 520/240mm | 520/240mm |
| Carriage Stroke | 750mm | 900mm |
| Cycle Time | 3.4S | 3.4S |
| Mold Size | Max.width:740mm | Max.width:740mm |
| Max.height:450mm | Max.height:450mm | |
| Min.thickness:2x120mm | Min.thickness:2x120mm | |
| Max.weight:2x350kG | Max.weight:2x350kG | |
| Machine Voltage | 380V/50Hz | 380V/50Hz |
| Air Pressure | 6-10bar | 6-10bar |
| Air Volume | About 150m3/h | About 150m3/h |
| Dimension(L×W×H) | 6500x6500x4000mm | 6500x6500x4000mm |
| Machine Weight | About 19.2Tons | About 19.2Tons |
