Roofing Panel Roll Forming Machine
Request a Quote
Our 840 corrugated sheet roll forming machine can not only be used to form corrugated ceramic but also 840 flat sheets. As a leading 840 corrugated sheet roll forming machine manufacturer in China, Bohai produces and supplies 840 corrugated sheet roll forming machines that are of high levels of automation and easy operation. Our 840 corrugated sheet roll forming machine is widely used by our customers from all over the globe, such as Ukraine, Mexico, Romania, UAE, Afghanistan, Iraq, Angola, Guinea and other countries.
Specifications| Raw Material | |
| Applicable Materials | GI (galvanized steel) GL (galvalume steel) PPGI (pre-painted galvanized steel) PPGL (pre-painted galvalume steel) AL (aluminum) CRC (cold rolled coil steel) HRC (hot rolled coil steel) |
| Material Thickness | 0.3-0.8mm (customizable) |
| Feeding Width | 1000-1250mm (customizable) |
| Effective Width | 840-1000mm (customizable) |
| Machine Dimensions & PLC | |
| Machine Size | Approx. 8×1.6×1.4m |
| Machine Weight | 5-8t |
| Machine Color | Customizable |
| Control System | Fully automatic control with PLC touch screen and frequency converter |
| Voltage | 380V, 50Hz, 3 Phase (upon customer's request) |
| Roll Forming Machine | |
| Main Shaft | Diameter: Ø70mm, Material: 45# steel (finish turning) |
| Roller Material | 45# steel (hard chrome plating, quenched to HRC 55-62) |
| Forming Stations | 12-18 stations |
| Motor Power | 3.0-11kW |
| Forming Speed | 8-30m/min |
| Cutting Device | |
| Cutting Method | Automatic cutting (3.0-11kW) |
| Cutting Blade Material | Cr12Mov (heat treatment, HRC 58-60) |

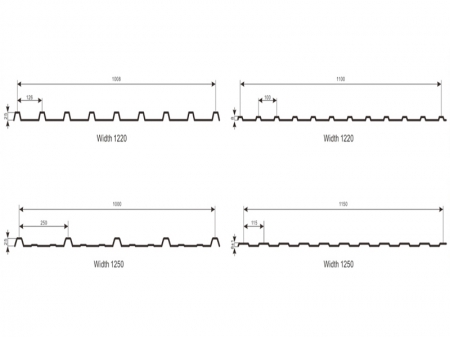

(Select from our standard profiles below, or send us your customized drawing)
ProcessDecoiling → Feeding & Guiding→ Roll Forming → Automatic Cutting-To-Length → Finished Product Collection
Configurations| No. | Equipment | Quantity |
| 1 | 5T Manual Uncoiler | 1 Set |
| 2 | Roll Forming Machine | 1 Set |
| 3 | Cutting Device | 1 Set |
| 4 | Hydraulic Power Unit | 1 Set |
| 5 | Control System (including Cabinet) | 1 Set |
| 6 | Run-Out Table | 1 Set |

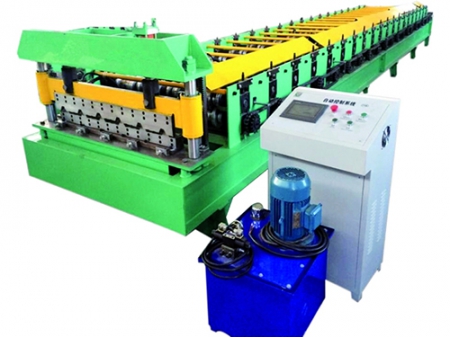

Machine Detail
- This 840 corrugated sheet roll forming machine is designed with compact structure and nice looking. The whole machine is welded with H steel, realizing steady performance.
- With the automatic measuring and cutting devices, the product gets highly precise and trim cutting edge.
