ASE (Amplified Spontaneous Emission) Light Source Module
Request a Quote
ASE is a miniaturized light source module with high power stability. Its excellent optical performance supports the full optical fiber sensing amplification. It is suitable for all kinds of compact single board installation.
Features
- Ultra low ripple
- Excellent power stability
- Flexible spectrum flatness mode
- Compact size
Applications
- Optical fiber sensing
- Gyroscope
- Lab and manufacture testing

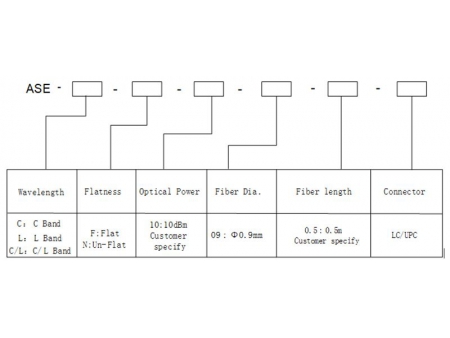

Ordering information
Key Parameters
| Parameter | Min. | Typ. | Max. | Units |
| Wavelength Range | 1528 | 1568 | nm | |
| Spectrum Flatness | 1.5 | dB | ||
| Output Power | 20 | dBm | ||
| Power Stability | ±0.02 | dB | ||
| Output Return Loss | 40 | dB | ||
| Ripple | 0.2 | dB | ||
| Module Size | (W×L×H)90×70×14.5 | mm | ||
| Fiber Type | Ф0.9 mm tight buffer | |||
