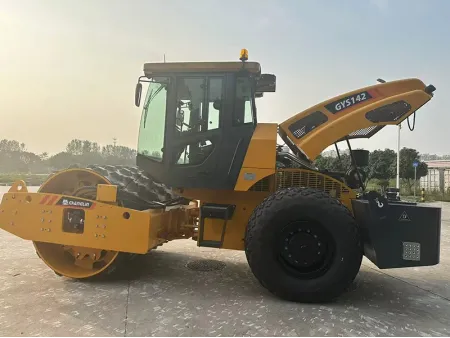

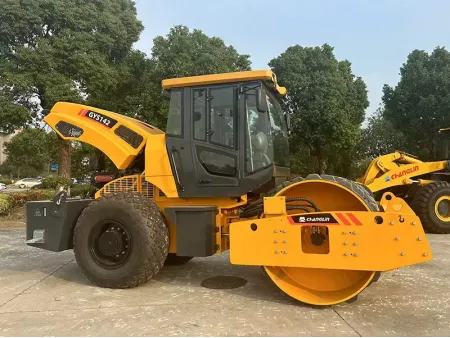

GYS142L Single Drum Vibratory Roller / Soil Compactor
Ideal for compacting foundations in large-scale infrastructure projects such as highways, dams, railways, and airports, this single drum vibratory roller is designed to handle non-cohesive and semi-cohesive materials like sand, gravel, crushed stone, and rock fill. The operator’s environment prioritizes comfort and visibility, featuring a three-stage vibration-damping cabin as standard, with optional air conditioning for all-weather usability. The machine is also equipped with LED work lights and an LCD smart dashboard to support efficient operation, even in low-light or nighttime conditions. For improved quality control during compaction, the unit can be optionally fitted with the MOBA intelligent compaction system. This technology monitors key parameters such as compaction level and surface temperature in real time, supporting smarter and more consistent jobsite results.
- Operating weight 14000 kg
- Vibratory drum diameter 1600 mm
- Centrifugal force 280/180 kN
Equipped with hydraulic drive, steering, and vibration systems, this compactor offers smooth and responsive control through a single lever. The emergency braking system automatically engages when fuel is cut off, ensuring reliable safety.
Delivers strong compaction performance with a 280 kN centrifugal force and 32 Hz vibration frequency. The articulated frame and hydraulic steering allow for flexible movement and easier maneuvering, even on uneven terrain.
The travel system uses a closed-circuit piston pump and motor, with dual-drum drive and high/low speed switching. This provides enhanced traction and excellent climbing capability across different jobsite conditions.
Designed with a high heat dissipation ratio to meet the demands of high-temperature, high-load, and heavy-duty operations.
Comes with an enclosed cabin as standard, with optional air conditioning to improve comfort during long shifts or in extreme weather.
- ModelGYS142L
- Operating weight14000kg
- Vibratory drum diameter1600mm
- Vibratory drum width2100mm
- Vibratory frequency28/32Hz
- Vibratory amplitude1.7/0.8mm
- Centrifugal force280/180kN
- Travel Speed (Forward)0-6km/h
- Travel Speed (Reverse)0-10km/h
- Min. ground clearance450mm
- Wheel base3010mm
- Static line pressure373N/cm
- Min. turning radius7000mm
- Gradeability35%
- Dimensions (L×W×H)5900×2250×3000mm
- Engine modelCummins
- Engine typeInline 4 cylinder, 4 stroke, water cooled
- Power110kW
- Rated speedr/min
- Fuel tank capacity300L
- Hydraulic oil tank capacity190L
- Tire20.5-25-16PR
