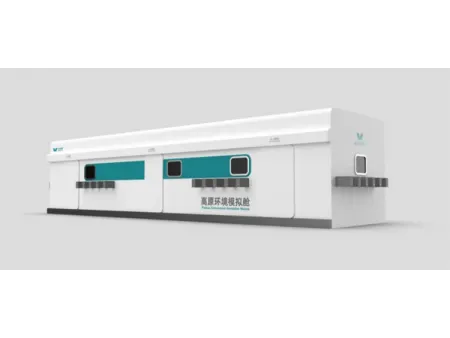

Auto Parts Sunlight Simulation Test Chamber
Request a Quote
Application
Auto parts sunlight simulation test chamber is applicable for testing the automotive interior parts such as IP, DP, Cockpit, CNSL, ashtrays, air outlets and other parts.
Technical parameters
| temperature range | -50°C～ 120°C |
| Temperature deviation | ≤±2 ℃ |
| Temperature uniformity | ≤2 ℃ |
| Temperature fluctuation | ≤±0.5 ℃ |
| Heating rate | ≤1℃/min or customized |
| Cooling rate | ≤0.7℃/min or customized |
| Humidity range | 20-95%rh |
| Humidity deviation | ≤±5%rh |
| Humidity fluctuation | ≤±2.5%rh |
| Light intensity | 1200w/m2; When the air temperature is about 65 ℃, the surface temperature of the tested object can be controlled to 120 ℃ |
| Low temperature relative humidity monitoring device is optional; relative humidity in low temperature is ≤ 30% rh | |
| Self-compiling program control | |
| Temperature and humidity control range without active heat load |
| PR308.2 2006 | version, 70℃ 95%RH, 105℃ storage in high temperaturel |
| GB2423.1-2008(IEC68-2-1:2007) | Test A :Low temperature test |
| GB2423.2-2008(IEC68-2-2:2007) | Test B: High temperature test |
| GB2423.3-2006(IEC68-2-78:2001) | Test Cab :Constant damp heat test (if there are requirements for humidity) |
| GB2423.4-2008(IEC68-2-30:2005) | Test Db :Alternating damp heat test (if there are requirements for humidity) |
| GJB150.3A-1986 | High temperature test |
| GJB150.4A-1986 | Low temperature test |
| GJB150.9A-1986 | Damp heat test (Figure 1, Figure 2) |
| GJB899-90 | Reliability identification and acceptance test |
| GJB1032-90 | Selecting method of environmental stress of electronic products |
| GB10589-2008 | Technical specifications for low temperature test chamber |
| GB11158-2008 | Technical specifications for high temperature test chamber |
| GB10586-2006 | Technical specifications for damp heat test chamber |
| MS210-05 | |
| IEC60068-2-2, -3, -28, -30, -56 | |
| JJF1101-2003 | Thermal stability test of automotive parts |
| PV2005 Scheme A 2000 version | PV1200 2004 version |
