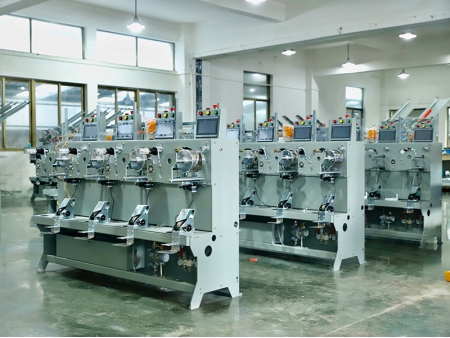

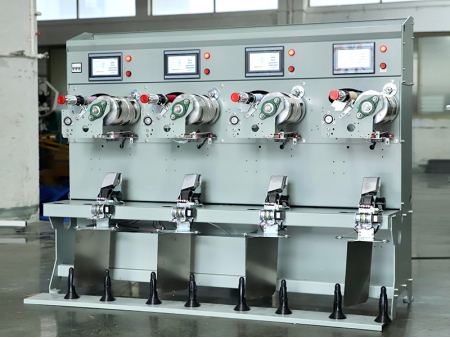

High Speed Sewing Thread Winding Machine
Request a Quote
Our high speed sewing thread winding machines are applied for the neat and high efficiency winding of sewing thread, embroidery thread, nylon thread, etc. Our sewing thread winding machine features high efficiency and easy operation due to a computer auto control system, frequency control, grooved drum style wire, magnetic tension control, and circulating pumping sets of oil pumps. The winding speed can reach up to 1000 m/min.
Parameters
| Model | |||
| Package type (bobbin form) | Horn-type | Column-type | Cone-type |
| Tube angle | 2°20′–5°57′ | 0° | 0°–2°20′ |
| Max. outer diameter | Ø110 mm | ||
| Number of spindles | 4 | ||
| Max. winding speed | 1000 m/min | ||
| Pattern back | 3–4 (customizable with optional parts) | ||
| Dimensions (L×W×H) | 2.0 × 0.88 × 1.5 m | ||
| Net weight | 450 kg | ||
| Total motor power | 1.2 kW | ||
| Actual power consumption | 400 W | ||
