AIR SUPPLY UNIT & AIR RECYCLE UNIT

Request a Quote

Website: http://carcoatingline-en.com/4-asu-aru.html

Automatic Coating Line for Automotive & Construction Equipment Parts

We design, manufacture and install air supply unit & air recycle unit for your painted products

Our air conditioning systems are typically composed of the following modular sections, which can be selected and combined as needed to meet the specific requirements of your coating processes:

Air Inlet Section
Primary Filtration Section
Cooling Coil Section
Humidification Section
Heating Section

Medium Filtration Section
Fan Section
Silencer Section
Air Outlet Section

Each of these functional sections can be configured and integrated to create an air handling solution tailored precisely to your coating process demands.

Details

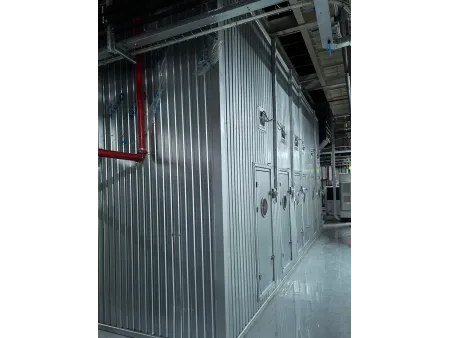

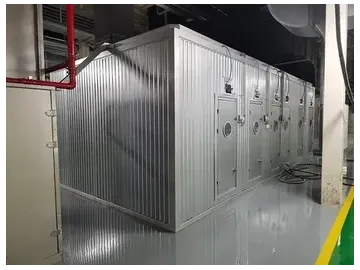

Conditioning Unit Exterior

Chilled Water Valve Group

Hot Water Valve Group

Air Conditioning Fan Unit

Heating/Cooling Coil Section

Filtration Section

Humidification Section

Depending on specific process requirements, air conditioning systems are generally categorized into fresh air conditioning systems and recirculating air conditioning systems.

3D Model of Fresh Air Conditioning System

3D Model of Recirculating Air Conditioning System
