Double Layer Roll Forming Machine
Bohai is a double layer roll forming machine manufacturer located in Yingkou city. With more than 20 years of experience in this line, Bohai is able to offer 840 corrugated sheet roll forming machine, Concealed Roof Panel Roll Forming Machine, double layer roll forming machine, flat sheet bending machine, sandwich panel forming machine and more roll forming machines for your choice. You are welcome to contact us for more information about our double layer roll forming machine.
Specifications| Raw Material | |
| Applicable Materials | GI (galvanized steel) GL (galvalume steel) PPGI (pre-painted galvanized steel) PPGL (pre-painted galvalume steel) AL (aluminum) CRC (cold rolled coil steel) HRC (hot rolled coil steel) |
| Material Thickness | 0.3-0.8mm (customizable) |
| Feeding Width | 1000-1250mm (customizable) |

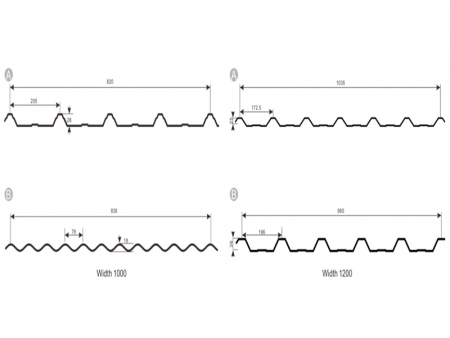

| Effective Width | 840-1000mm (customizable) |
| Machine Dimensions & PLC | |
| Machine Size | Approx. 8×1.6×1.4m |
| Machine Weight | 5-8t |
| Machine Color | Customizable |
| Control System | Fully automatic control with PLC touch screen and frequency converter |
| Voltage | 380V, 50Hz, 3 Phase (upon customer's request) |
| Roll Forming Machine | |
| Main Shaft | Diameter: Ø70mm, Material: 45# steel (finish turning) |
| Roller Material | 45# steel (hard chrome plating, quenched to HRC 55-62) |
| Forming Stations | 9-19 stations /11-21 stations |
| Motor Power | 3.0-11kW |
| Forming Speed | 8-30m/min |
| Cutting Device | |
| Cutting Method | Automatic cutting (3.0-11kW) |
| Cutting Blade Material | Cr12Mov (heat treatment, HRC 58-60) |
Process
Decoiling → Feeding & Guiding → Roll Forming → Automatic Cutting-To-Length → Finished Product Collection
- De-coiler
- Double Layer Forming Machine
- Hydraulic Station
- PLC Control Cabinet
- Hydraulic Forming Cutter
- Discharging End
| No. | Equipment | Quantity |
| 1 | 5T Manual Uncoiler | 1 Set |
| 2 | Roll Forming Machine | 1 Set |
| 3 | Cutting Device | 1 Set |
| 4 | Hydraulic Power Unit | 1 Set |
| 5 | Control System (including Cabinet) | 1 Set |
| 6 | Run-Out Table | 1 Set |
Features
This double layer roll forming machine exerts the performance meeting the international standard level. It supports the custom design and fabrication based on the specific demands of customers. Moreover, we offer perfect after sales service for users and can help users to accomplish the installation, adjustment and maintenance of the product.
