Consistent suction and sturdy structure for secure lifting
Customizable by drawing to suit specific operational requirements
Enhanced safety design with dual protection mechanisms
Leakage alert and pressure-loss protection to prevent sudden drop
Supports lifting weights from 25 kg to 200 kg

The vacuum lifter is a reliable and damage-free tool that makes manual lifting of fragile and irregular loads safer and more efficient. Powered by compressed air, it uses a porous sponge and a vacuum generator to create negative pressure. No matter what you need to lift and move, the vacuum lifter makes the job easier and effortless.

Vacuum lifter is ideal for secure lifting without risk of damaging the goods or the person lifting them. Widely used in industrial automation, logistics sorting, and precision manufacturing, this vacuum lifting system is ideal for handling fragile or irregularly shaped items such as glass panels, food packaging, electronic casings, and ceramic products. In the automotive industry, it assists in lifting car body panels; in medical applications, it is used for sorting reagent bottles; and in the logistics sector, it enables automated handling of parcels and packages.

Component Overview

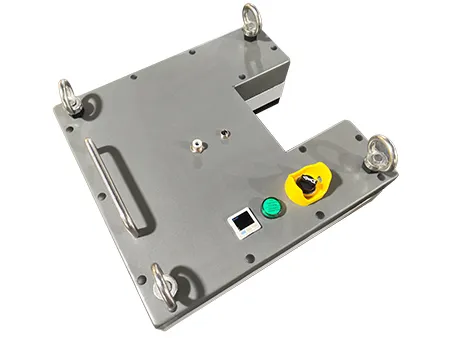

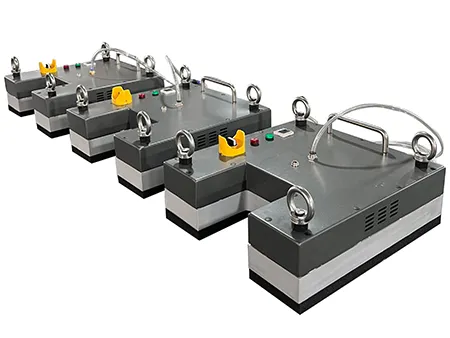

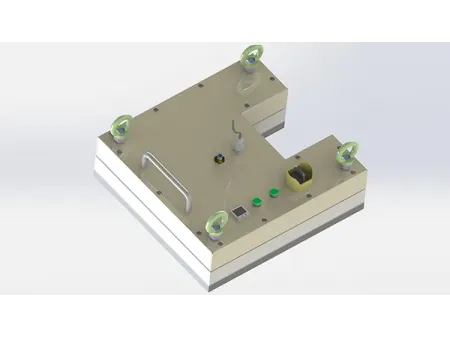

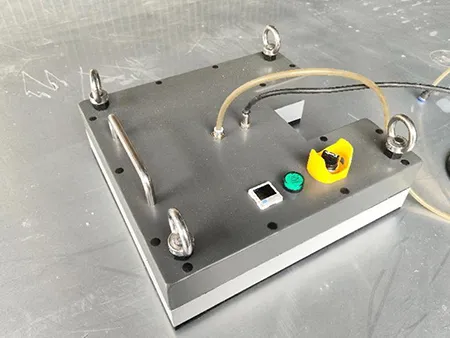

The vacuum lifter consists of a suction body, sponge layer, control circuit and pneumatic system, sheet metal housing, and lifting ring. When the suction knob is activated, the vacuum generator begins operation. Within 1–3 seconds, the system reaches the required negative pressure level, indicated by a green light, signaling that the material can be safely lifted.

Safety Features

Now in its fifth-generation design, the vacuum lifter includes upgraded safety components such as a buzzer and check valve for enhanced protection.

Leakage alert system:
If minor air leakage occurs during lifting, the object won’t fall immediately. When the vacuum level drops below the preset threshold, the buzzer sounds to alert the operator to lower the load safely and promptly.
Pressure-holding function:
In case of compressor shutdown or sudden air supply failure, the vacuum lifter maintains negative pressure temporarily. This prevents the load from falling instantly. The buzzer activates to warn the operator to lower the item without delay.

Features

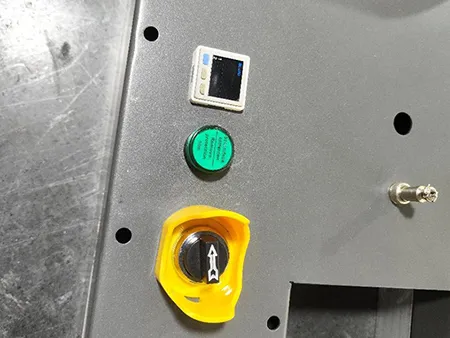

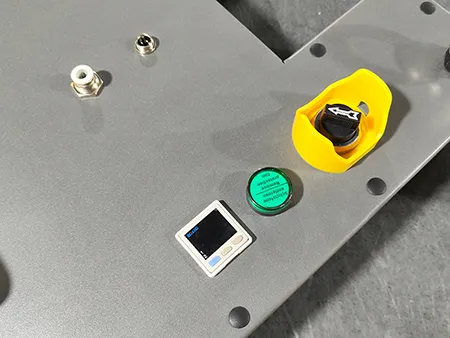

Industrial-grade pneumatic control system with an anti-mistouch knob switch, protective cover, and smooth operation

Smart vacuum monitoring with digital sensor and tri-color LED indicator for real-time vacuum level feedback

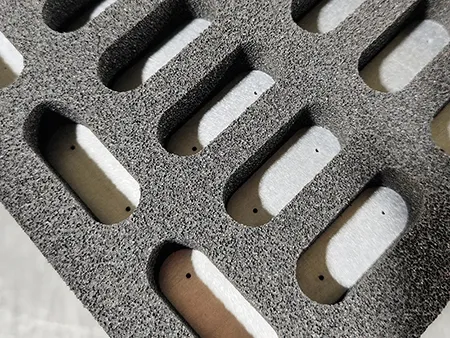

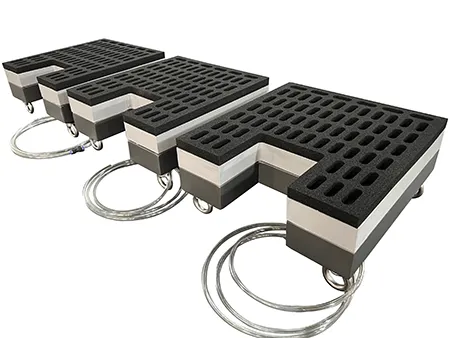

Custom thick sponge pad and textured outer shell for enhanced durability, scratch resistance, and wear protection

Upgraded vacuum structure for faster suction response, improved hold-down force, and higher load capacity
