500w Fiber Laser Cutting Machine Manufacturer

500w Fiber Laser Cutting Machine

Request a Quote

Website: http://accurlcnc.com/5-1-1-500w-fiber-laser-cutting-machine-with-ipg-fiber-laser/294487/index.html

with IPG Fiber Laser

ACCURL fiber laser cutting machine - big innovation in technology, with exceptional reliability & high beam quality.

Advantages

With great flexibility, it is easy to cut non-ferrous metals, such as copper and brass. It shows exceptional quality.

Low production and maintenance costs due to low power consumption. No requirements for resonator gas.

The fiber laser machine is suitable for marking, finishing and detailing the pieces to be cut.

Unbeatable high output of fine thickness pieces.

The machine is easy to install and fast to put into service.

High cutting speed for the materials with thicknesses less than 4mm.

With the fiber laser machine, the cutting speed for the material of thicknesses less than 6mm is 5. If using N2 when operating, the speed can be 5 times faster.

The compact design takes up minimal space, but with no size limitation. The approximate lifecycle is between 4.000 and 5.000 hours.

The exceptional efficiency of the fiber laser greatly reduced electricity consumption. This machine is 86% more energy efficient than the CO₂ laser.

Lens only need to be changed once a year, within an “optional clean room” environmentally controlled area. The same lens can be used for treating all materials in any thickness.

Characteristics

High output power

High quality of laser beam

Less focus, large focal distance

Coefficient of efficiency over 30%

Compact, solid and easy to install

Low operation cost

Flexible and durable fiber optic cable

High electrical efficiency

Lifespan of the diodes over 100,000 hours

Low requirements for cooling

Specifications

Model	ECO-FIBER-2040 /IPG 500w Fiber
Transmitting system	Precise ball screw transmitting
Laser power	500W
Max running speed	40/min
X/Y location precision	0.05mm/m
Power supply	380v 50Hz
X/Y repeated location precision	±0.05mm
Machine gross power	≶ 10KVA
Running temperature	0°C-40°C
Running humidity	< 90%
Max. accelerated speed	0.3G
Applied materials	Thin mild steel, stainless steel and other kinds of metallic sheets;

Type	IPG	IPG	IPG	IPG	IPG
	YLS-500W	YLR-700	YLR-2 kW	YLR-3 kW	YLR-4 kW
Output power	500 W	700 W	2000 W	3000 W	4000 W
Material
Mild steel	6 mm	8 mm	16 mm	20 mm	25 mm
Stainless steel	2,5 mm	3 mm	8 mm	12 mm	15 mm
Aluminum	2 mm	2.5 mm	6 mm	12 mm	12 mm
Brass	1 mm	2 mm	3 mm	8 mm	8 mm
Copper	1 mm	2 mm	3 mm	8 mm	8 mm
Galvanized steel	1 mm	2 mm	4 mm	10 mm	10 mm

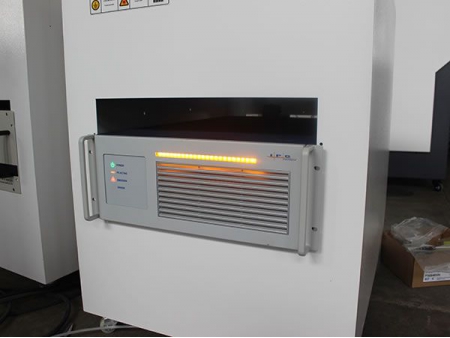

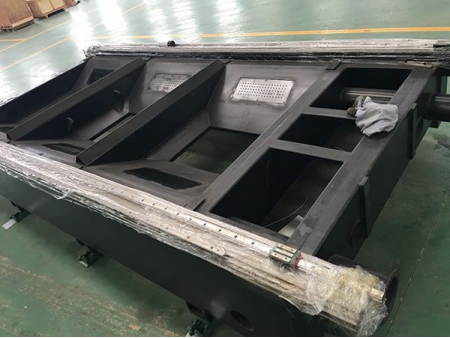

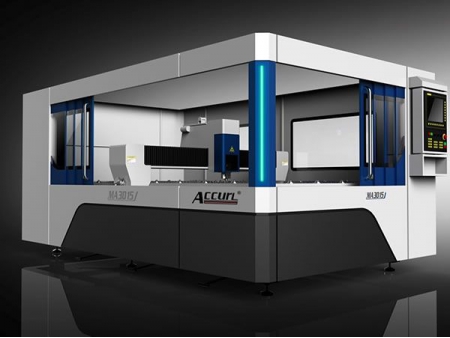

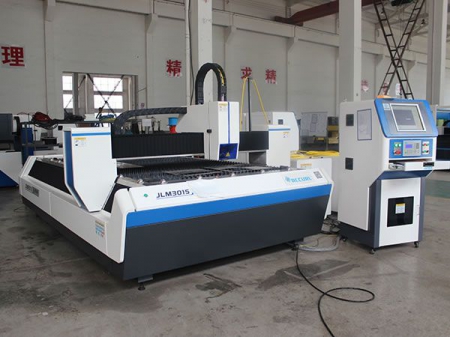

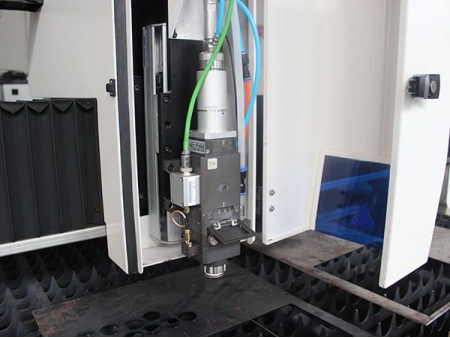

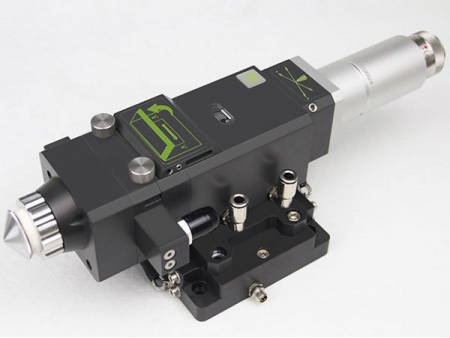

Detailed Pictures
