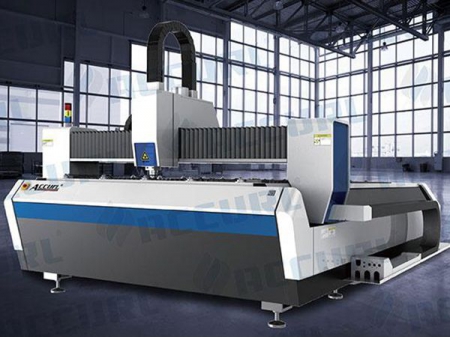

500W 700W 1000W Fiber Laser Cutting Machine
Request a Quote
(Sheet Metal Cutting)
This incredibly fast and flexible fiber laser cutting machine is designed for ultra-high speed cutting of thin sheet metal materials. The laser cutter is able to cut through a wide range of ferrous and non-ferrous metals with excellent efficiency, minimizing the cost of operating the equipment.
Features
- User friendly Cypcut Windows CAD/CAM CNC control unit.
- Unique features:
Maximum simultaneous positioning speed: 160m/min.
Acceleration speed: 14 m/ s2 (1.5G).
Precision: - 0.05 mm.
Energy efficiency: greatly reduced power consumption.
IPG Resonator. Power output from 500w - RayTools cutter cutting head with power output up to 2kw.

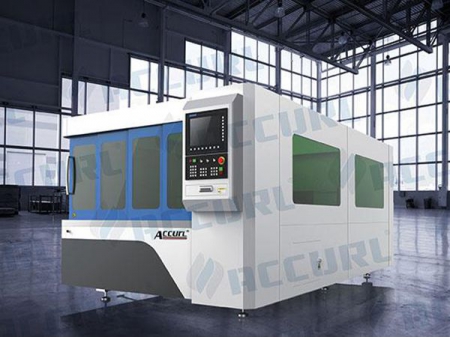

- Fully enclosed designed for maximum operator protection.
- Effective high to low pressure gas exchange system.
- High pressure cutting head with high precision capacitive sensor/
- Automatic mechanized Nesting power output control function.
- Automatic time and unit cost calculation function.
- External network connectivity
- Smoke extraction unit (included in series models).
- Workpiece and trimming collection unit.
- Dual proportional valve control system for different gas pressures and a high pressure cutting system.
Standard Equipment Sets

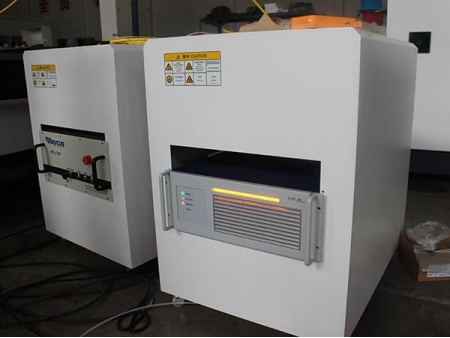

- IPG YLR-500W,700W,1000W Ytterbium Laser Resonator
- Linear Driven X, U and Y Axes

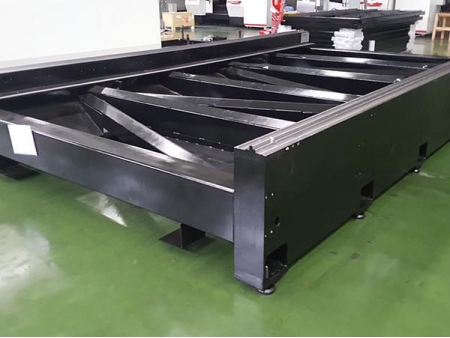

- High Rigid Frame

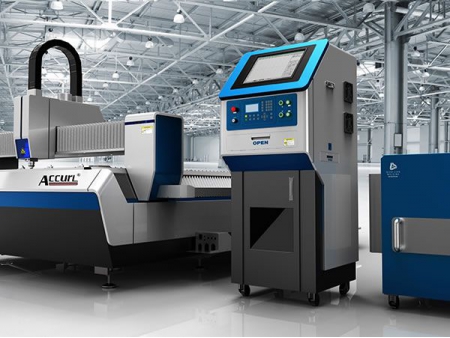

- Empower or FAGOR CNC Controller

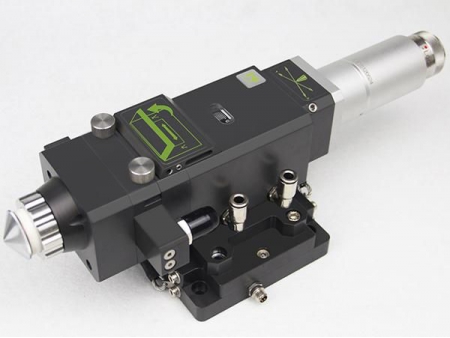

- Precitec Cutting Head
- Lantek Software
- Shuttle Table
- Chiller Unit
- Proportional Gas and Piping System
- Dust Filter
- Compressor
- Conveyor for Scraps
Specifications
| Model | KJG-1530 / IPG 500w | |
| Maximum cutting capacity | Mild steeL | 6mm |
| Stainless steel | 2.5mm | |
| Aluminum | 1.5mm | |
| Copper | 1.0mm | |
| Laser Power | YLR-500Watt | |
| Max running speed | 40/min | |
| Work piece dimensions | 1500 x 3000mm | |
| Rapid traverse (X and Y axis) | 105 m/min | |
| Acceleration | 1.2G (12m/s2) | |
| Absolute positioning accuracy | ± 0.03 mm | |
| Max. load capacity | 1550 kg | |
| Fume extractor | 1000 m3/hour | |
| Laser Cutting Head | RayTools BM110 from Switzerland | |
| Feed rate | Programmable up to 30 m/min. | |
| Applied Materials | Thin mild steel, Stainless steel, Aluminum, Copper plate | |
| Model | KJG-1530 / IPG 700w | |
| Maximum cutting capacity | Mild steeL | 8mm |
| Stainless steel | 3mm | |
| Aluminum | 2mm | |
| Copper | 1.0mm | |
| Laser Power | YLR-700Watt | |
| Max running speed | 40/min | |
| Work piece dimensions | 1500 x 3000mm | |
| Rapid traverse (X and Y axis) | 105 m/min | |
| Acceleration | 1.2G (12m/s2) | |
| Absolute positioning accuracy | ± 0.03 mm | |
| Max. load capacity | 1550 kg | |
| Fume extractor | 1000 m3/hour | |
| Laser Cutting Head | RayTools BM110 from Switzerland | |
| Feed rate | Programmable up to 30 m/min. | |
| Applied Materials | Thin mild steel, Stainless steel, Aluminum, Copper plate | |
| Model | KJG-1530 / IPG 1000w | |
| Maximum cutting capacity | Mild stee | 10mm |
| Stainless steel | 4mm | |
| Aluminum | 3mm | |
| Copper | 1.5mm | |
| Laser Power | YLR-1000Watt | |
| Max running speed | 40/min | |
| Work piece dimensions | 1500 x 3000mm | |
| Rapid traverse (X and Y axis) | 105 m/min | |
| Acceleration | 1.2G (12m/s2) | |
| Absolute positioning accuracy | ± 0.03 mm | |
| Max. load capacity | 1550 kg | |
| Fume extractor | 1000 m3/hour | |
| Laser Cutting Head | RayTools BM110 from Switzerland | |
| Feed rate | Programmable up to 30 m/min. | |
| Applied Materials | Thin mild steel, Stainless steel, Aluminum, Copper plate | |

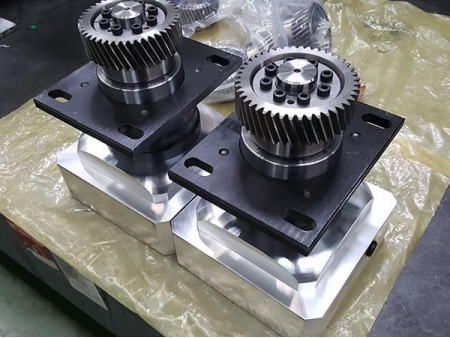

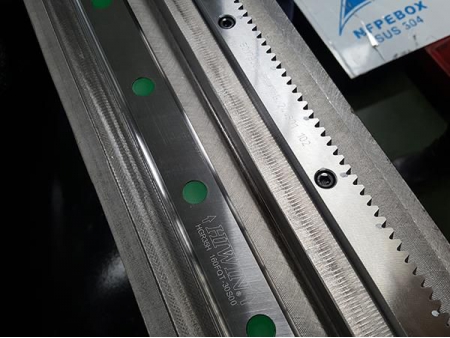

Detailed Pictures
