32T Precast Concrete Lifting Clutch
Request a Quote
Features
● Material: alloy steel forgings.
● We should carry out 100% magnetic powder flaw detection.
● We should carry out strict sampling and breakage testing for each batch of products.
● Surface treatment: cold galvanizing or plastic spraying.
● Safety factor: 4: 1

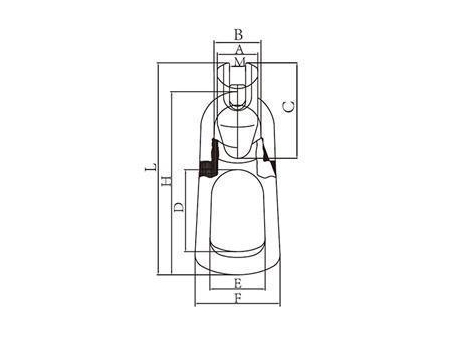

| Item Code | Weight (kg) | Woring Load Limit (t) | Breaking Load/t | A±1 | B±1 | C±1 | D±1 | E±1 | F±1 | H±1 | M±2 | L±2 |
| SLR-101-1-1.3 | 0.89 | 1-1.3 | 5.2 | 34 | 42 | 80.4 | 70.5 | 45 | 73 | 157 | 11.5 | 181 |
| SLR-101-1-1.5-2.5 | 1.3 | 1.5-2.5 | 10 | 42 | 49 | 99 | 85 | 57 | 88 | 190 | 16 | 220 |
| SLR-101-1-3-5 | 3.24 | 3-5 | 20 | 55 | 70 | 133 | 88 | 69 | 110 | 233 | 22 | 271 |
| SLR-101-1-6-10 | 10.01 | 6-10 | 40 | 74 | 92 | 176 | 116 | 83 | 161 | 336.5 | 30 | 386 |
| SLR-101-1-12-20 | 20.37 | 12-20 | 80 | 110 | 114.5 | 228 | 133.5 | 107.5 | 182 | 437 | 42 | 497 |
| SLR-101-1-12-32 | 46.5 | 32 | 128 | 154 | 172 | 307 | 189 | 164 | 272 | 560 | 52 | 661 |
