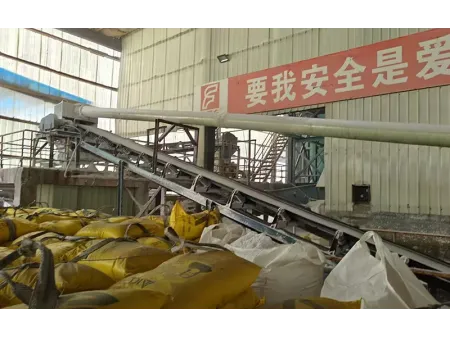

Trough Belt Conveyor
Request a Quote
Bulk handling conveyor for transporting large volumes of bulk materials
The trough belt conveyor, commonly known as a belt conveyor, operates based on the principle of friction-driven movement and is ideal for transporting low-abrasive bulk materials like coal, sand, grain, and fertilizers. It accommodates materials with a bulk density below 1.67 tons per cubic meter, while operating in environments between -20°C and 40°C, and handling material temperatures below 60°C. The length and design of the conveyor can be customized according to the user’s requirements, making it suitable for various industries.
Specifications
| Model | Belt width (mm) | Carrying idler type | Trough idler | ||||
| Conveying speed (m/s) | 0.6 | 0.8 | 1.0 | 1.3 | 1.6 | ||
| 500 | Conveying capacity (t/h) | 20 | 30 | 40 | 50 | 60 | |
| 650 | 40 | 55 | 70 | 85 | 110 | ||
| 800 | 65 | 85 | 110 | 140 | 180 | ||
| 1000 | 90 | 140 | 180 | 210 | 280 | ||
| 1200 | 150 | 200 | 260 | 340 | 440 | ||
| 1400 | 240 | 320 | 380 | 500 | 600 | ||
| Note: The conveying capacity will vary according to changes in the bulk density of the conveyed material, its flowability, and the angle of inclination. | |||||||
Features
- Low power consumption due to minimal relative movement between the material and the belt, resulting in reduced wear and tear, as well as higher productivity.
- Conveyor lines can be customized in length and configuration to fit various operational needs, allowing for material to be received or discharged at multiple points along the route.
