Cycle Nipple Making Machine
Request a Quote
View All: http://foam-spraying.com

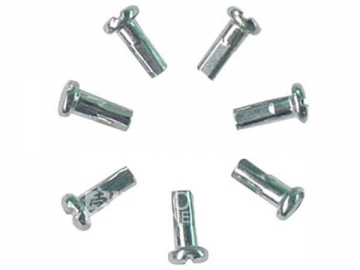

The automatic cycle nipple making machine is utilized for the drilling and tapping of various spoke nipples. It is capable of automatic and precise functions such as milling flutes, continuous tapping, the storing, feeding, and removal of material. It can also drill holes such as center hole, macro pore, or small opening. BOBO offers a one year parts warrantee with the purchase of this machine.
Technical Specifications
| Spoke nipples specification | 15G, 14G, 13G, 12G, 10G | |
| Rotate speed of axis of rotation in gear wheel box | N=169T/MIN | |
| Rotate speed of equal division plate | N=3.5T/MIN | |
| Production ability | Processing 14G, 13G, 15G | Processing 12G, 10G |
| Capacity | 16800pcs (25pcs/min) | |
| Main electromotor | model: Y9DS4(vertical) 1.1kw N=1410T/MIN | |
| Electric pump | model:DB25A N=2760T/MIN | |
| Occupy area | 1285MM*1040MM=1.3M2 | |
| Weight | 1200Kg | |
As a China cycle nipple making machine manufacturer and supplier, we provide various types of products such as chain welding machine, rotary swaging machine, Polyurethane Spray Foam Machine, and Packaging Foam Machine.
