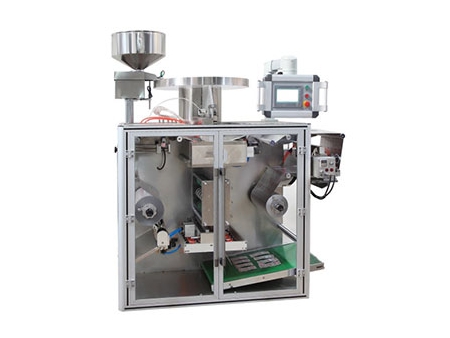

Automatic Double Aluminum Blister Packaging Machine

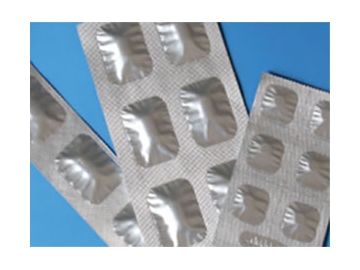

The automatic double aluminum blister packaging machine is designed to improve the packing efficiency of tablets, candies, and pills, catering to pharmaceuticals, healthcare, chemicals, and food industries. Its aluminum-aluminum foil heat sealing capability is perfect for products that require protection from light, and it's equally adept at plastic-plastic heat-sealing packaging. The packaging machine can automatically perform tasks like vibrating material feeding, broken piece filtering, counting, and both longitudinal and transverse impressing. It even easily handles the removal of cutting margin scrap and batch number printing with ease.
Powered by a PLC programmable controller and featuring a frequency converter and user-friendly man-machine interface, it allows for easy cutting speed and travel range adjustments. The blister packaging equipment is known for its precise feeding, strong sealing, versatility, and stable performance. Not only does it enhance product quality, but it also extends product durability, making it a must-have in the pharmaceutical industry.
Our blister packaging machine meets the national Medicine Inspection Bureau standards and is recognized as a Science and Technology Achievement in Zhejiang Province, this machine sets the bar high for packaging excellence.
Specifications| Model | ||||
| Rotate Speed of Drum (rpm) | 7-15 (stepless) | 7-14 (stepless) | ||
| Production Capacity (pcs/h) | 20000-85000 | 20000-80000 | 20000-120000 | |
| Packaging Dimensions (mm) (customizable) | 220mm | 300mm | 400mm | |
| Packaging Material (mm) | PVC for medicine | 0.05-0.1×220 | 0.05-0.1×300 | 0.05-0.1×400 |
| AL-plastic combined film | 0.08-0.10×220 | 0.08-0.10×300 | 0.08-0.10×400 | |
| Hole dia | 70-75 | 70-75 | 70-75 | |
| Electro Thermal Power | 380V/1.5kW×2 | 380V/1.2kW×2 | 380V/1.5kW×2 | |
| Main Motor Power (kW) | 0.55 | 1.1 | 1.5 | |
| Air Pressure (Mpa) | 0.4-0.6 | |||
| Air Supply | ≥0.1m3/min | |||
| Overall Dimensions (mm) | 1450×670×1700 (L×W×H) | 1500×850×1670mm (L×W×H) | 1500×950×1670mm (L×W×H) | |
| Weight (kg) | 650 | 900 | 1000 | |
As a professional high speed blister packaging machine manufacturer and supplier in China, we also offer medicine printer, double cone medicine mixer, single punch tablet press machine, and much more.
