Voltmeter cam switches are a multi-position switch used to connect two wires in a power system to the voltmeter, and display the voltage between the circuits on a single voltmeter. is a multi-position switch, used to connect the two wires of the power system with the voltmeter, to display the voltage between the circuits on one voltmeter.

The output from our voltmeter rotary switches can be easily input in the digital or analog detection machine. Our voltmeter switches are available in 3-phase line to line, and 3-phase line to neutral. We provide switch customization service, and sincerely invite you to contact us for more information.

Application

Voltmeter

Basic information

Rated current: 20A
Panel size: 48*60mm
Function number: 61313
Color: Blue/black/white
Handle: I type
Protection grade: IP20
Product section number(n): 3
Product certificates: UL, CE, TUV, CCC, ISO

Parameter

Specification	LW26-20
	LW26-20X
	LW26-20C
Rated insulation voltage	660/690
Rated thermal current	20
Rated working voltage	24	110	240	440
Rated working current
AC-21A			20	20
AC-23A			15	15
AC-2			15	15
AC-3			11	11
AC-4			3.5	3.5
AC-15			5	4
DC-13	12	0.4	0.4
Power
AC-23A			3.7/2.5	7.5/3.7
AC-2			4	7.5
AC-3			3/2.2	5.5/3
AC-4			0.55/0.75	1.5/1.5

Attention: listed above are 20A switches. We can also produce switches with other current.

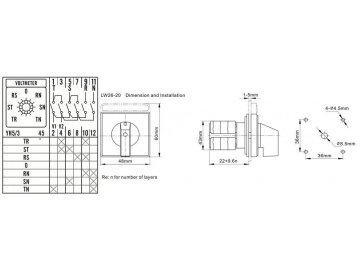

Size drawing and contact diagram
