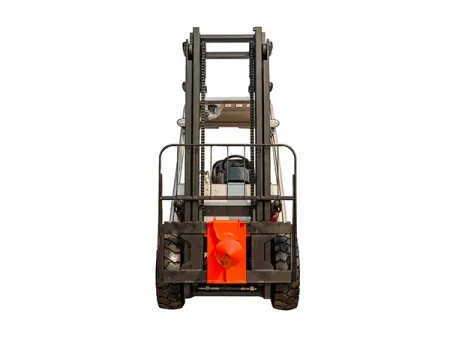

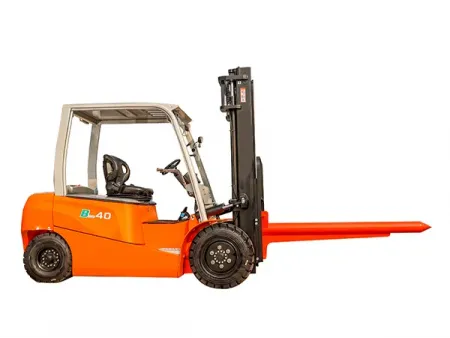

B40 Electric Forklift
Request a Quote
Lithium battery forklift truck with rated load capacity of 4000kg
- Rated load capacity
4000kg - Load center distance
500mm - Driving mode
Seated - Overall length (with forks)
3957mm
Specifications
| Power type | Lithium battery |
| Rated load capacity | 4000kg |
| Load center distance | 500mm |
| Driving mode | Seated |
| Overall length (with forks) | 3957mm |
| Overall length (without forks) | 2882mm |
| Overall width | 1232mm |
| Mast lowered height | 2149mm |
| Overhead guard height | 2100mm |
| Max. working height | 4183mm |
| Wheelbase | 1980mm |
| Front overhang | 455mm |
| Rear overhang | 464mm |
| Front wheel track width | 1020mm |
| Rear wheel track width | 988mm |
| Min. ground clearance | 135mm |
| Min. turning radius | 2650mm |
| Standard lifting height | 3000mm |
| Fork adjustment range | 260-1100mm |
| Mast tilt angle (front/rear) | 6°/12° |
| Max. lifting speed (no load) | 380mm/s |
| Max. lifting speed (full load) | 300mm/s |
| Max. travel speed (no load) | 12km/h |
| Max. travel speed (full load) | 12km/h |
| Total machine weight | 4680kg |
| Number of wheels | 2/2 |
| Tire type (front/rear) | Pneumatic tire/pneumatic tire |
| Tire size (front) | 28×9-15 |
| Tire size (rear) | 6.50-10 |
| Service brake | Hydraulic brake |
| Parking brake | Manual brake |
| Drive motor power | 13.1kW |
| Hydraulic pump motor power | 16.5kW |
