GKV35 | 10-40L/min
Request a Quote

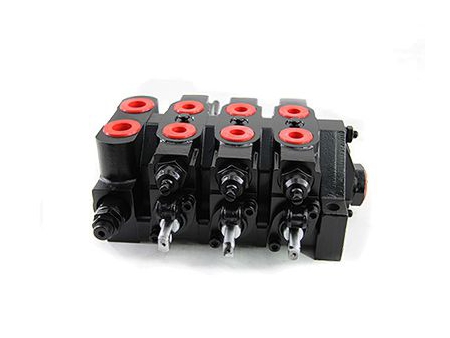

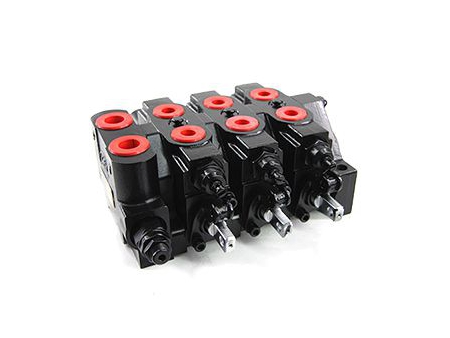

Sectional Directional Control Valve
The GKV35 series of sectional directional control valves from GRH, specifically designed for low-flow mobile machinery. This valve excels in applications where precision and adaptability are key. It's ideal for a range of equipment including agricultural machinery, where it aids in complex farming tasks, and construction machinery, enhancing the functionality of loaders and excavators.
Specifications
| Nominal flow rate | 35L/min | Max. pressure (T port) | 25bar |
| Max. flow | 40L/min | Internal leakage (70 bar) A/B to T | 15-20cc/min |
| Min. flow | 10L/min | Internal leakage (70 bar) A/B to T with port valve | 2-5cc/min |
| Max. pressure (P port) | 210bar | Spool stroke (position 1/2) | 7/-7mm |
| Max. pressure (A/B port) | 210bar | Floating spool stroke (position 1/2 and F) | 7/-7 -10mm |

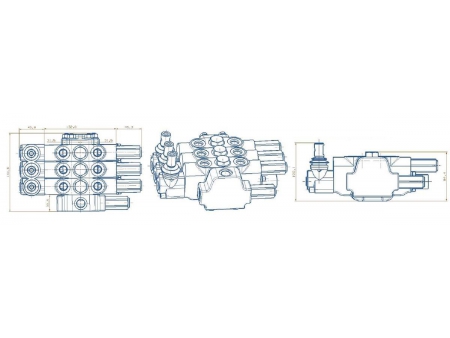

Dimensions
Applications
The GKV35 series is also well-suited for mining machinery, handling equipment, maintenance machinery, and other engineering vehicles, providing reliable performance in various operations.
