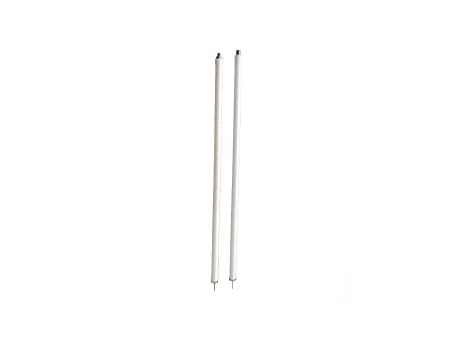

String Wound Filter Cartridge for Condensate Polishing, PHFX Series
Request a Quote
View All: http://filtrationcartridge.com/7-1-string-wound-filter-cartridge-for-condensate-polishing.html

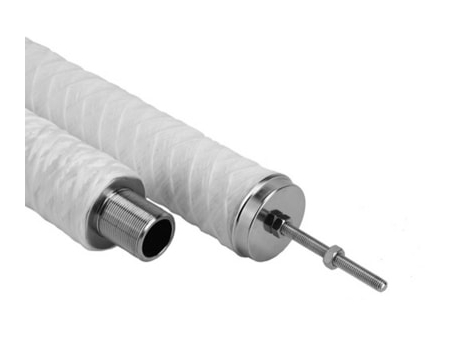

Our string wound filter cartridges utilize high-performance fibers (polypropylene, cotton, glass fiber, and more) wound tightly around a porous frame using precise techniques. Controlled by CNC systems, the winding process takes place on a stainless steel porous frame, preventing fiber deformation and shedding. Our string wound filter cartridges effectively remove suspended particles, rust, and other impurities for a wide range of applications.
Materials of Construction
| Filter Medium | PP (Polypropylene), CO (Cotton), GF (Glass Fiber), FC (Organic Fiber) |
| Central Frame | 304/316L Stainless Steel |
| Connection Type | Threaded M33x2, M33x1.5, G1", 13/16"~24BSW (Customizable) |
| Gasket/O-ring | Fluoro rubber, Silicone Rubber, Nitrile Rubber, EPDM Rubber |
Specifications
| Length | 1778mm |
| Inside Diameter | 25/28mm |
| Outside Diameter | 50/60mm |
| Max. differential pressure | 3.0bar@90℃ |
| Recommended Inlet Water Quality | ＜1000ppb |
| Filter Medium | Max. Operating Temperature |
| Polypropylene Fiber | 85℃ |
| Cotton | 120℃ |
| Polyester Fiber | 150℃ |
| Glass Fiber | 250℃ |
| Basalt Fiber | 350℃ |
Applications
- Pre-treatment for reverse osmosis filtration systems and seawater desalination
- Condensate polishing systems for power plants
- Impurity filtration systems in paint processing, coating processing, and petrochemical industries
- Filtration systems in microelectronics processing
