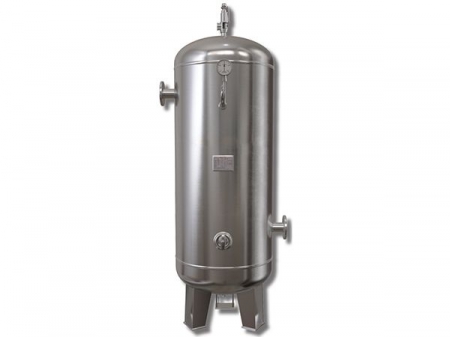

Air Storage Tank

Request a Quote

Website: http://aircomprs.com/7-air-storage-tank.html

Carbon Steel Air Storage Tank ( < 1.6MPa)

No.	Volume / Working Pressure (L/Mpa)	Design Temperature (℃)	Overall Height (mm)	Inner Diameter of Vessel ⌀ (mm)	Air Inlet			Air Outlet			Support		Drain Valve Connector	Compressor
No.	Volume / Working Pressure (L/Mpa)	Design Temperature (℃)	Overall Height (mm)	Inner Diameter of Vessel ⌀ (mm)	H1	DN	Thread	H2	DN	Thread	⌀1	d	Drain Valve Connector	Reference volume (m³/min)
1	0.3/0.8		1550											2.5～3
2	0.3/1.0	100	1550		580			1130						2.5～3
3	0.3/1.3	110	1550	550	580	50	Rp11/2"	1130	50	Rp11/2"	400	20	R1/2"	2.5～3
4	0.6/0.8				605			1550						4.8～6
5	0.6/1.0	100	2060		605			1550						4.8～6
6	0.6/1.3	110	2060	650	605	65	Rp11/2"	1610	65	Rp11/2"	470	20	R1/2"	4.8～6
7	1.0/0.8													8～10
8	1.0/1.0	100	2180		685			1725						8～10
9	1.0/1.3	110	2202	800	730	65	Rp11/2"	1770	65	Rp11/2"	560	25	R1/2"	8～10
10	1.5/0.8		2290		780									12～15
11	1.5/1.0				780			1780						12～15
12	1.5/1.3	110	2291	1000	781	65	Rp2"	1780	65	Rp2"	700	24	R1/2"	12～15
13	2.0/0.8													16～20
14	2.0/1.0													16～20
15	2.0/1.3	110	2810	1000	780	80	Rp2"	2280	80	Rp2"	700	24	R1/2"	16～20
16	3.0/0.8		2962		880			2380						24～30
17	3.0/1.0		2962		881			2380						24～30
18	3.0/1.3	110	2964	1200	882	80		2382	80		840	24	R3/4"	24～30
19	4.0/0.8		3060		930			2430						32～40
20	4.0/1.0		3062		931			2431						32～40
21	4.0/1.3	110	3066	1400	933	100		2433	100		1050	24	R3/4"	32～40
22	5.0/0.8		3750		930			3130						40～50
23	5.0/1.0		3752					3132						40～50
24	5.0/1.3	110	3756	1400	931	100		3133	100		1050	24	R3/4"	40～50

No.	Volume / Working Pressure (L/Mpa)	Design Temperature (℃)	Overall Height (mm)	Inner Diameter of Vessel	Air Inlet			Air Outlet				Support			Drain Valve Connector	Compressor
No.	Volume / Working Pressure (L/Mpa)	Design Temperature (℃)	Overall Height (mm)	Inner Diameter of Vessel	H1	DN	Thread	H2		DN	Thread	⌀1		d	Drain Valve Connector	Reference volume (m³/min)
25	6.0/0.8	110	4360	1400	930	100		3740	100			1050	24		R3/4	48~60
26	6.0/1.0		4362		931			3741								48~60
27	6.0/1.3		4366		932			3743								48~60
28	8.0/0.8	110	4464	1600	981	150		3831	150			1200	30		R1"	64~80
29	8.0/1.0		4464		982			3732								64~80
30	8.0/1.3		4468		984			3732								64~80
31	10/0.8	110	3765	2000	1082	150		2933	150			1500	30		R1"	80
32	10/1.0		3766		1083			2933								80
33	10/1.3		3770		1086			2936								80
34	12.5/0.8	110	4714	2000	1133	150		3833	150			1500	30		R1"	80
35	12.5/1.0		4716					3834								80
36	12.5/1.3		4722		1136			3836								80
37	15/0.8	110	5084	2100	1172	150		4174	150			1550	30		R1"	80
38	15/1.0		5088		1174			4175								80
39	15/1.3		5094		1176			4177								80
40	20/0.8	110	5236	2400	1298	200		4200	200			1800	36		R1"	80
41	20/1.0		5240		1300											80
42	20/1.3		5244		1302											80
43	25/0.8	110	6136	2400	1298	200		5095	200			1800	36		R1"	80
44	25/1.0		6140		1300											80
45	25/1.3		6144		1302											80
46	30/0.8	110	6896	2500	1324	200		5774	200			1900	36		R1"	80
47	30/1.0		6900		1325			5775								80
48	30/1.3		6908		1329			5779								80
49	40/0.8	110	8676	2500	1323	200		7603	1325			1900	36		R1"	80
50	40/1.0		8680		1325			200								80
51	50/0.8	110	9007	2800	1506	250		6750	250			3000	30		DN40	80
52	50/1.0															80
53	75/1.0	110	10257	3200	1800	250		8200	250			3400	30		DN40	80
54	75/0.8		10256													80

Carbon Steel Air Storage Tank (≥1.6MPa)

No.	Volume / Working Pressure (L/Mpa)	Design Temperature (℃)	Overall Height (mm)	Inner Diameter of Vessel	Air Inlet				Air Outlet			Support		Drain Valve Connector	Compressor
No.	Volume / Working Pressure (L/Mpa)	Design Temperature (℃)	Overall Height (mm)	Inner Diameter of Vessel	H1	DN		Thread	H2	DN	Thread	⌀1	d	Drain Valve Connector	Reference volume (m³/min)
1	0.3/1.6	110	1626	550	668		50		1217	50		400	20	R1/2"	2.5~3
2	0.3/3.0		1630		671				1220					R1/2"	2.5~3
3	0.3/4.0		1630		673				1222						2.5~3
4	0.6/1.6	110	2136	650	693		65		1704	65		470	20	R1/2"	4.8~6
5	0.6/2.5		2410	600	697		50		1997	50		420		Rc1"	4.8~6
6	0.6/3.0		2410		698				1998					Rc1"	4.8~6
7	0.6/4.0		2410		635		65		1945	65				Rc1"	4.8~6
8	1.0/1.6	110	2220	800	730		65		1770	65		560	25	R1/2"	8~10
9	1.0/3.0		2220		730				1770					Rc1"	8~10
10	1.0/4.0		2220		730				1770						8~10
11	1.5/1.6	110	2578	1000	780		65		1780	65		670	25	R1/2"	12~15
12	1.5/3.0		2670	950	775				2070					Rc1"	12~15
13	1.5/4.0		2690		794										12~15
14	2.0/1.6	110	2846	1000	783		80		2282	80		700	24	R1/2"	16~20
15	2.0/3.0		2984		854				2364					Rc1"	16~20
16	2.0/4.0		2962		856				2351						16~20
17	3.0/1.6	110	2966	1200	883		80		2383	80		950	24	R3/4"	24~30
18	3.0/3.0		2902		916				2218					DN25	24~30
19	4.0/1.6	110	3068	1400	934		100		2434	100		1050	24	R3/4"	32~40
20	4.0/3.0		3006		968				2218					DN25	32~40
21	5.0/1.6	110	3758	1400	932		150		3134	150		1050	24	R1"	40~50
22	5.0/3.0		3882		956				3106					DN25	40~50
23	6.0/1.6	110	4458	1400	932		150		3834	150		1050	24	R1"	48~60
24	6.0/3.0		4582		956				3806					DN25	48~60
25	8.0/1.6	110	4470	1600	985		150		3731	150		1200	25	R1"	64~80
26	8.0/3.0		4656		990				3840					DN25	64~80
27	10/1.6	110	3772	2000	1087		150		2937	150		1500	30	R1"	80
28	12.5/1.6	110	4724	2000	1137		150		3838	150		1500	30	R1"	80
29	15/1.6	110	5094	2100	1179		150		4179	150		1550	30	Rc1"	80
30	20/1.6	110	5248	2400	1254		200		4200	200		1800	36	Rc1"	80
31	25/1.6	110	6158	2400	1304		200		5094	200		1800	36	Rc1"	80
32	30/1.6	110	6982	2500	1331		200		5781	200		1900	36	Rc1"	80

Note: We reserve the right to make design improvements without prior notice. Product specifications are subject to change, and the final specifications may vary depending on the actual machine.
